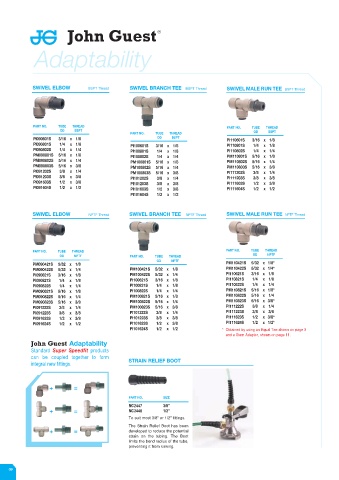

Adaptability

SWIVEL ELBOW BSPT Thread SWIVEL BRANCH TEE BSPT Thread SWIVEL MALE RUN TEE BSPT Thread

PART NO. TUBE THREAD PART NO. TUBE THREAD
OD BSPT OD BSPT
PART NO. TUBE THREAD
PI090601S 3/16 x 1/8 OD BSPT PI110601S 3/16 x 1/8
PI090801S 1/4 x 1/8 PI100601S 3/16 x 1/8 PI110801S 1/4 x 1/8
PI090802S 1/4 x 1/4 PI100801S 1/4 x 1/8 PI110802S 1/4 x 1/4
PM090801S 5/16 x 1/8 PI100802S 1/4 x 1/4 PM110801S 5/16 x 1/8
PM090802S 5/16 x 1/4 PM100801S 5/16 x 1/8 PM110802S 5/16 x 1/4
PM090803S 5/16 x 3/8 PM100802S 5/16 x 1/4 PM110803S 5/16 x 3/8
PI091202S 3/8 x 1/4 PM100803S 5/16 x 3/8 PI111202S 3/8 x 1/4
PI091203S 3/8 x 3/8 PI101202S 3/8 x 1/4 PI111203S 3/8 x 3/8
PI091603S 1/2 x 3/8 PI101203S 3/8 x 3/8 PI111603S 1/2 x 3/8
PI091604S 1/2 x 1/2 PI101603S 1/2 x 3/8 PI111604S 1/2 x 1/2
PI101604S 1/2 x 1/2

SWIVEL ELBOW NPTF Thread SWIVEL BRANCH TEE NPTF Thread SWIVEL MALE RUN TEE NPTF Thread

PART NO. TUBE THREAD PART NO. TUBE THREAD
OD NPTF PART NO. TUBE THREAD OD NPTF
OD NPTF
PM090421S 5/32 x 1/8 PM110421S 5/32 x 1/8*
PM090422S 5/32 x 1/4 PM100421S 5/32 x 1/8 PM110422S 5/32 x 1/4*
PI090621S 3/16 x 1/8 PM100422S 5/32 x 1/4 PI110621S 3/16 x 1/8
PI090821S 1/4 x 1/8 PI100621S 3/16 x 1/8 PI110821S 1/4 x 1/8
PI090822S 1/4 x 1/4 PI100821S 1/4 x 1/8 PI110822S 1/4 x 1/4
PM090821S 5/16 x 1/8 PI100822S 1/4 x 1/4 PM110821S 5/16 x 1/8*
PM090822S 5/16 x 1/4 PM100821S 5/16 x 1/8 PM110822S 5/16 x 1/4
PM090823S 5/16 x 3/8 PM100822S 5/16 x 1/4 PM110823S 5/16 x 3/8*
PI091222S 3/8 x 1/4 PM100823S 5/16 x 3/8 PI111222S 3/8 x 1/4
PI091223S 3/8 x 3/8 PI101222S 3/8 x 1/4 PI111223S 3/8 x 3/8
PI091623S 1/2 x 3/8 PI101223S 3/8 x 3/8 PI111623S 1/2 x 3/8*
PI091624S 1/2 x 1/2 PI101623S 1/2 x 3/8 PI111624S 1/2 x 1/2*
PI101624S 1/2 x 1/2 * Obtained by using an Equal Tee shown on page 3
and a Stem Adaptor, shown on page 11.
John Guest Adaptability
Standard Super Speedfit products
can be coupled together to form STRAIN RELIEF BOOT
integral new fittings.

+ =

PART NO. SIZE
NC2447 3/8”
+ = NC2448 1/2”
To suit most 3/8” or 1/2” fittings.
The Strain Relief Boot has been
+ = developed to reduce the potential
strain on the tubing. The Boot
limits the bend radius of the tube,
preventing it from kinking.
