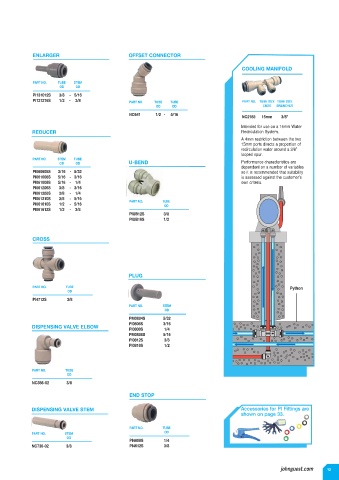

Page 13 - Drinks Dispense & Pure Water - John Guest

ENLARGER OFFSET CONNECTOR

COOLING MANIFOLD

PART NO. TUBE STEM
OD OD
PI131012S 3/8 - 5/16
PI131216S 1/2 - 3/8 PART NO. TUBE TUBE PART NO. TUBE SIZE TUBE SIZE
OD OD ENDS BRANCHES

NC641 1/2 - 5/16
NC2183 15mm 3/8”
Intended for use on a 15mm Water
REDUCER Recirculation System.
A 4mm restriction between the two
15mm ports directs a proportion of
recirculation water around a 3/8”
looped spur.
PART NO. STEM TUBE
OD OD U-BEND Performance characteristics are
dependent on a number of variables
PI060605S 3/16 - 5/32 so it is recommended that suitability
PI061006S 5/16 - 3/16 is assessed against the customer’s
PI061008S 5/16 - 1/4 own criteria.
PI061206S 3/8 - 3/16
PI061208S 3/8 - 1/4
PI061210S 3/8 - 5/16 PART NO. TUBE
PI061610S 1/2 - 5/16 OD
PI061612S 1/2 - 3/8
PIUB12S 3/8
PIUB16S 1/2

CROSS

PLUG
PART NO. TUBE Python
OD
PI4712S 3/8
PART NO. STEM
OD
PM0804S 5/32
PI0806S 3/16
DISPENSING VALVE ELBOW PI0808S 1/4
PM0808S 5/16
PI0812S 3/8
PI0816S 1/2

PART NO. TUBE
OD
NC356-02 3/8

END STOP

DISPENSING VALVE STEM Accessories for PI Fittings are
shown on page 33.

PART NO. TUBE
PART NO. STEM OD
OD
PI4608S 1/4
NC730-02 3/8 PI4612S 3/8

johnguest.com 12
