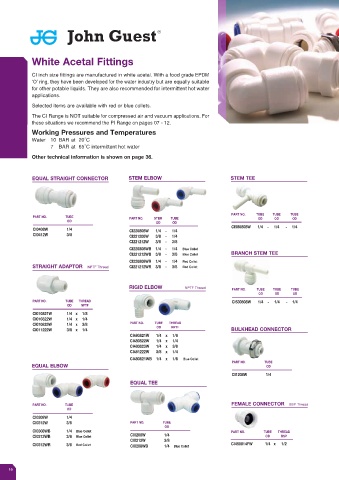

Page 16 - Drinks Dispense & Pure Water - John Guest

White Acetal Fittings

CI inch size fittings are manufactured in white acetal. With a food grade EPDM
‘O’ ring, they have been developed for the water industry but are equally suitable
for other potable liquids. They are also recommended for intermittent hot water
applications.

Selected items are available with red or blue collets.
The CI Range is NOT suitable for compressed air and vacuum applications. For
these situations we recommend the PI Range on pages 07 - 12.
Working Pressures and Temperatures
Water 10 BAR at 20˚C
7 BAR at 65˚C intermittent hot water
Other technical information is shown on page 36.

EQUAL STRAIGHT CONNECTOR STEM ELBOW STEM TEE

PART NO. TUBE PART NO. STEM TUBE PART NO. TUBE TUBE TUBE

OD
OD
OD
OD OD OD
CI580808W 1/4 - 1/4 - 1/4
CI0408W 1/4 CI220808W 1/4 - 1/4
CI0412W 3/8 CI221208W 3/8 - 1/4
CI221212W 3/8 - 3/8
CI220808WB 1/4 - 1/4 Blue Collet
CI221212WB 3/8 - 3/8 Blue Collet BRANCH STEM TEE
CI220808WR 1/4 - 1/4 Red Collet
STRAIGHT ADAPTOR NPTF Thread CI221212WR 3/8 - 3/8 Red Collet
RIGID ELBOW NPTF Thread PART NO. TUBE TUBE TUBE
OD OD OD
PART NO. TUBE THREAD CI530808W 1/4 - 1/4 - 1/4
OD NPTF
CI010821W 1/4 x 1/8
CI010822W 1/4 x 1/4
CI010823W 1/4 x 3/8 PART NO. TUBE THREAD
NPTF

OD
CI011222W 3/8 x 1/4 BULKHEAD CONNECTOR
CI480821W 1/4 x 1/8
CI480822W 1/4 x 1/4
CI480823W 1/4 x 3/8
CI481222W 3/8 x 1/4
CI480821WB 1/4 x 1/8 Blue Collet
EQUAL ELBOW PART NO. TUBE
OD

CI1208W 1/4
EQUAL TEE

PART NO. TUBE FEMALE CONNECTOR BSP Thread
OD
CI0308W 1/4
CI0312W 3/8 PART NO. TUBE
OD
CI0308WB 1/4 Blue Collet PART NO. TUBE THREAD
CI0312WB 3/8 Blue Collet CI0208W 1/4 OD BSP
CI0212W 3/8
CI0312WR 3/8 Red Collet CI0208WB 1/4 Blue Collet CI450814FW 1/4 x 1/2
