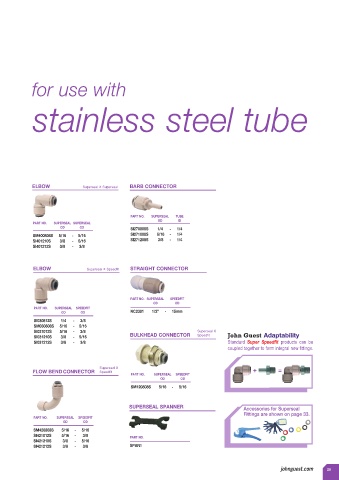

Page 21 - Drinks Dispense & Pure Water - John Guest

for use with

stainless steel tube

ELBOW Superseal X Superseal BARB CONNECTOR

PART NO. SUPERSEAL TUBE
OD ID
PART NO. SUPERSEAL SUPERSEAL
OD OD SI270808S 1/4 - 1/4
SM400808S 5/16 - 5/16 SI271008S 5/16 - 1/4
SI401210S 3/8 - 5/16 SI271208S 3/8 - 1/4
SI401212S 3/8 - 3/8

ELBOW Superseal X Speedfit STRAIGHT CONNECTOR

PART NO. SUPERSEAL SPEEDFIT
OD OD
PART NO. SUPERSEAL SPEEDFIT
OD OD NC2301 1/2” - 15mm
SI030812S 1/4 - 3/8
SM030808S 5/16 - 5/16
SI031012S 5/16 - 3/8 Superseal X

SI031210S 3/8 - 5/16 BULKHEAD CONNECTOR Speedfit John Guest Adaptability
SI031212S 3/8 - 3/8 Standard Super Speedfit products can be
coupled together to form integral new fittings.

Superseal X
FLOW BEND CONNECTOR Speedfit + =
PART NO. SUPERSEAL SPEEDFIT
OD OD
SM120808S 5/16 - 5/16

SUPERSEAL SPANNER Accessories for Superseal
Fittings are shown on page 33.
PART NO. SUPERSEAL SPEEDFIT
OD OD
SM420808S 5/16 - 5/16
SI421012S 5/16 - 3/8 PART NO.
SI421210S 3/8 - 5/16
SI421212S 3/8 - 3/8 SPAN1
