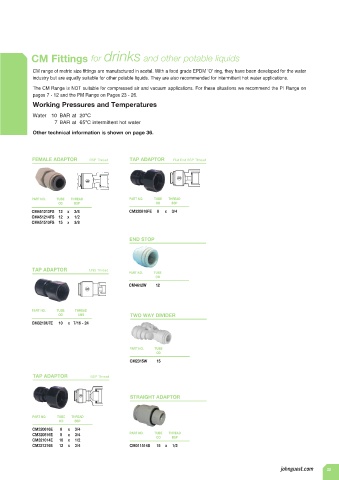

Page 23 - Drinks Dispense & Pure Water - John Guest

CM Fittings for drinks and other potable liquids

CM range of metric size fittings are manufactured in acetal. With a food grade EPDM ‘O’ ring, they have been developed for the water
industry but are equally suitable for other potable liquids. They are also recommended for intermittent hot water applications.
The CM Range is NOT suitable for compressed air and vacuum applications. For these situations we recommend the PI Range on
pages 7 - 12 and the PM Range on Pages 23 - 26.
Working Pressures and Temperatures

Water 10 BAR at 20ºC
7 BAR at 65ºC intermittent hot water
Other technical information is shown on page 36.

FEMALE ADAPTOR BSP Thread TAP ADAPTOR Flat End BSP Thread

PART NO. TUBE THREAD PART NO. TUBE THREAD
OD BSP OD BSP
CM451213FS 12 x 3/8 CM320816FE 8 x 3/4
CM451214FS 12 x 1/2
CM451513FS 15 x 3/8

END STOP

TAP ADAPTOR UNS Thread
PART NO. TUBE
OD
CM4612W 12

PART NO. TUBE THREAD
OD UNS TWO WAY DIVIDER
CM3210U7E 10 x 7/16 - 24

PART NO. TUBE
OD
CM2315W 15

TAP ADAPTOR BSP Thread

STRAIGHT ADAPTOR

PART NO. TUBE THREAD
OD BSP
CM320616E 6 x 3/4
CM320816E 8 x 3/4 PART NO. TUBE THREAD
OD
BSP

CM321014E 10 x 1/2
CM321216E 12 x 3/4 CM011514S 15 x 1/2
johnguest.com 22
