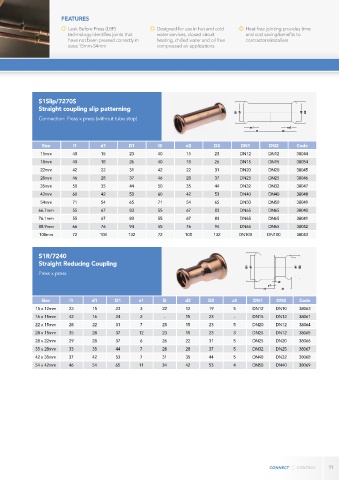

Page 11 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

FEATURES

Leak Before Press (LBP) Designed for use in hot and cold Heat free jointing provides time
technology identifies joints that water services, closed circuit and cost saving benefits to
have not been pressed correctly in heating, chilled water and oil free contractors/installers
sizes 15mm-54mm compressed air applications

S1Slip/7270S
Straight coupling slip patterning
Connection: Press x press (without tube stop)

Size l1 d1 D1 l2 d2 D2 DN1 DN2 Code
15mm 40 15 23 40 15 23 DN12 DN12 38044
18mm 40 18 26 40 18 26 DN15 DN15 38054
22mm 42 22 31 42 22 31 DN20 DN20 38045
28mm 46 28 37 46 28 37 DN25 DN25 38046
35mm 50 35 44 50 35 44 DN32 DN32 38047
42mm 60 42 53 60 42 53 DN40 DN40 38048
54mm 71 54 65 71 54 65 DN50 DN50 38049
66.7mm 55 67 83 55 67 83 DN65 DN65 38040
76.1mm 55 67 83 55 67 83 DN65 DN65 38041
88.9mm 66 76 94 55 76 94 DN65 DN65 38042
108mm 72 108 132 72 108 132 DN100 DN100 38043

S1R/7240
Straight Reducing Coupling
Press x press

Size l1 d1 D1 z1 l2 d2 D2 z2 DN1 DN2 Code
15 x 12mm 23 15 23 3 22 12 19 5 DN12 DN10 38063
16 x 15mm 42 16 24 2 - 15 23 - DN15 DN12 38061
22 x 15mm 28 22 31 7 25 15 23 5 DN20 DN12 38064
28 x 15mm 35 28 37 12 23 15 23 3 DN25 DN12 38065
28 x 22mm 29 28 37 6 26 22 31 5 DN25 DN20 38066
35 x 28mm 33 35 44 7 28 28 37 5 DN32 DN25 38067
42 x 35mm 37 42 53 7 31 35 44 5 DN40 DN32 38068
54 x 42mm 46 54 65 11 34 42 53 4 DN50 DN40 38069

11
