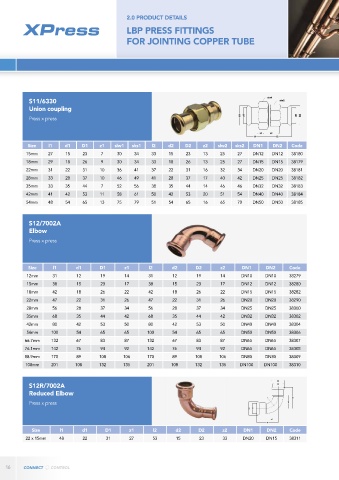

2.0 PRODUCT DETAILS

LBP PRESS FITTINGS
FOR JOINTING COPPER TUBE

S11/6330
Union coupling
Press x press

Size l1 d1 D1 z1 slw1 sks1 l2 d2 D2 z2 slw2 sks2 DN1 DN2 Code
15mm 27 15 23 7 30 34 33 15 23 13 25 27 DN12 DN12 38180
18mm 29 18 26 9 30 34 33 18 26 13 25 27 DN15 DN15 38179
22mm 31 22 31 10 36 41 37 22 31 16 32 34 DN20 DN20 38181
28mm 33 28 37 10 46 49 41 28 37 17 40 42 DN25 DN25 38182
35mm 33 35 44 7 52 56 38 35 44 14 46 46 DN32 DN32 38183
42mm 41 42 53 11 58 61 50 42 53 20 51 54 DN40 DN40 38184
54mm 48 54 65 13 75 79 51 54 65 16 65 70 DN50 DN50 38185

S12/7002A
Elbow
Press x press

Size l1 d1 D1 z1 l2 d2 D2 z2 DN1 DN2 Code
12mm 31 12 19 14 31 12 19 14 DN10 DN10 38279
15mm 38 15 23 17 38 15 23 17 DN12 DN12 38280
18mm 42 18 26 22 42 18 26 22 DN15 DN15 38282
22mm 47 22 31 26 47 22 31 26 DN20 DN20 38290
28mm 56 28 37 34 56 28 37 34 DN25 DN25 38300
35mm 68 35 44 42 68 35 44 42 DN32 DN32 38302
42mm 80 42 53 50 80 42 53 50 DN40 DN40 38304
54mm 100 54 65 65 100 54 65 65 DN50 DN50 38306
66.7mm 132 67 83 87 132 67 83 87 DN65 DN65 38307
76.1mm 142 76 94 92 142 76 94 92 DN65 DN65 38308
88.9mm 170 89 108 106 170 89 108 106 DN80 DN80 38309
108mm 201 108 132 135 201 108 132 135 DN100 DN100 38310

S12R/7002A
Reduced Elbow

Press x press

Size l1 d1 D1 z1 l2 d2 D2 z2 DN1 DN2 Code
22 x 15mm 48 22 31 27 53 15 23 33 DN20 DN15 38311
