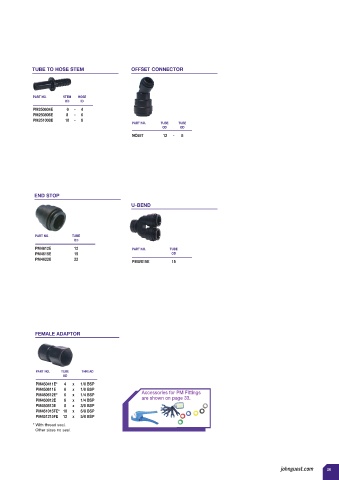

Page 27 - Drinks Dispense & Pure Water - John Guest

TUBE TO HOSE STEM OFFSET CONNECTOR

PART NO. STEM HOSE
OD ID
PM250604E 6 - 4
PM250806E 8 - 6
PM251008E 10 - 8
PART NO. TUBE TUBE
OD OD
NC657 12 - 8

END STOP
U-BEND

PART NO. TUBE
OD
PM4612E 12 PART NO. TUBE
PM4615E 15 OD
PM4622E 22
PMUB15E 15

FEMALE ADAPTOR

PART NO. TUBE THREAD
OD
PM450411E* 4 x 1/8 BSP
PM450611E 6 x 1/8 BSP Accessories for PM Fittings
PM450612E* 6 x 1/4 BSP are shown on page 33.
PM450812E 8 x 1/4 BSP
PM450813E 8 x 3/8 BSP
PM451015FE* 10 x 5/8 BSP
PM451215FE 12 x 5/8 BSP
* With thread seal.
Other sizes no seal.

johnguest.com 26
