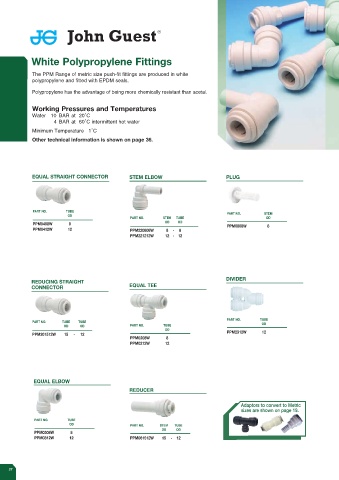

White Polypropylene Fittings

The PPM Range of metric size push-fit fittings are produced in white
polypropylene and fitted with EPDM seals.

Polypropylene has the advantage of being more chemically resistant than acetal.

Working Pressures and Temperatures
Water 10 BAR at 20˚C
4 BAR at 60˚C intermittent hot water
Minimum Temperature 1˚C
Other technical information is shown on page 36.

EQUAL STRAIGHT CONNECTOR STEM ELBOW PLUG

PART NO. TUBE PART NO. STEM
OD
PART NO. STEM TUBE OD
PPM0408W 8 OD OD PPM0808W 8
PPM0412W 12 PPM220808W 8 - 8
PPM221212W 12 - 12

DIVIDER
REDUCING STRAIGHT
CONNECTOR EQUAL TEE

PART NO. TUBE
PART NO. TUBE TUBE OD
OD OD PART NO. TUBE
OD
PPM201512W 15 - 12 PPM2312W 12
PPM0208W 8
PPM0212W 12

EQUAL ELBOW
REDUCER

Adaptors to convert to Metric
sizes are shown on page 19.

PART NO. TUBE
OD PART NO. STEM TUBE
OD OD
PPM0308W 8
PPM0312W 12 PPM061512W 15 - 12
