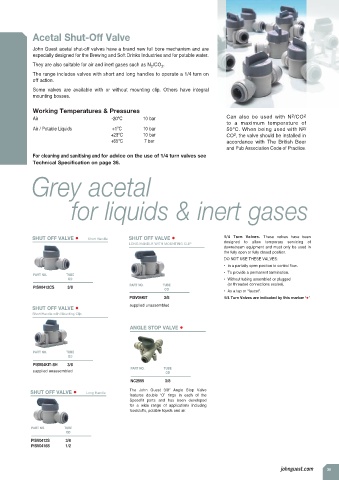

Acetal Shut-Off Valve

John Guest acetal shut-off valves have a brand new full bore mechanism and are
especially designed for the Brewing and Soft Drinks Industries and for potable water.
They are also suitable for air and inert gases such as N /CO .
2 2
The range includes valves with short and long handles to operate a 1/4 turn on
off action.
Some valves are available with or without mounting clip. Others have integral
mounting bosses.

Working Temperatures & Pressures
2
2
Can also be used with N /CO
Air -20ºC 10 bar
to a maximum temperature of
Air / Potable Liquids +1ºC 10 bar 50ºC. When being used with N /
2
+23ºC 10 bar CO , the valve should be installed in
2
+65ºC 7 bar accordance with The British Beer
and Pub Association Code of Practice.
For cleaning and sanitising and for advice on the use of 1/4 turn valves see
Technical Specification on page 36.
Grey acetal

for liquids & inert gases

SHUT OFF VALVE • Short Handle SHUT OFF VALVE • 1/4 Turn Valves. These valves have been
designed to allow temporary servicing of
LONG HANDLE WITH MOUNTING CLIP
downstream equipment and must only be used in
the fully open or fully closed position.
DO NOT USE THESE VALVES:
• In a partially open position to control flow.
• To provide a permanent termination.
PART NO. TUBE
OD • Without tubing assembled or plugged
PISV0412CS 3/8 PART NO. TUBE (or threaded connections sealed).
OD

• As a tap or “faucet”.
PISV04KIT 3/8 1/4 Turn Valves are indicated by this marker ‘•’
SHUT OFF VALVE • supplied unassembled
Short Handle with Mounting Clip

ANGLE STOP VALVE •

PART NO. TUBE
OD
PISV04KIT-SH 3/8
PART NO. TUBE
supplied unassembled OD
NC2555 3/8
SHUT OFF VALVE • Long Handle The John Guest 3/8” Angle Stop Valve
features double ‘O’ rings in each of the
Speedfit ports and has been developed
for a wide range of applications including
foodstuffs, potable liquids and air.

PART NO. TUBE
OD
PISV0412S 3/8
PISV0416S 1/2
