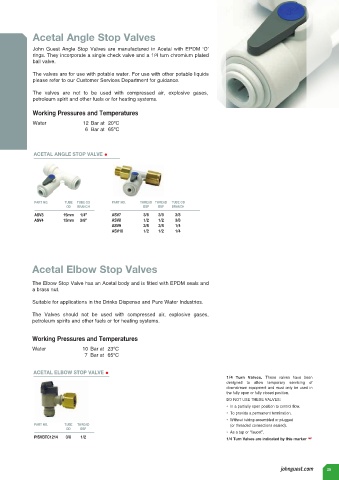

Acetal Angle Stop Valves

John Guest Angle Stop Valves are manufactured in Acetal with EPDM ‘O’
rings. They incorporate a single check valve and a 1/4 turn chromium plated
ball valve.

The valves are for use with potable water. For use with other potable liquids
please refer to our Customer Services Department for guidance.

The valves are not to be used with compressed air, explosive gases,
petroleum spirit and other fuels or for heating systems.

Working Pressures and Temperatures

Water 12 Bar at 20ºC
6 Bar at 65ºC

ACETAL ANGLE STOP VALVE •

PART NO. TUBE TUBE OD PART NO. THREAD THREAD TUBE OD
OD BRANCH BSP BSP BRANCH
ASV3 15mm 1/4” ASV7 3/8 3/8 3/8
ASV4 15mm 3/8” ASV8 1/2 1/2 3/8
ASV9 3/8 3/8 1/4
ASV10 1/2 1/2 1/4

Acetal Elbow Stop Valves

The Elbow Stop Valve has an Acetal body and is fitted with EPDM seals and
a brass nut.

Suitable for applications in the Drinks Dispense and Pure Water Industries.
The Valves should not be used with compressed air, explosive gases,
petroleum spirits and other fuels or for heating systems.

Working Pressures and Temperatures

Water 10 Bar at 23ºC
7 Bar at 65ºC

ACETAL ELBOW STOP VALVE •
1/4 Turn Valves. These valves have been
designed to allow temporary servicing of
downstream equipment and must only be used in
the fully open or fully closed position.
DO NOT USE THESE VALVES:
• In a partially open position to control flow.
• To provide a permanent termination.
• Without tubing assembled or plugged
PART NO. TUBE THREAD (or threaded connections sealed).
OD BSP
• As a tap or “faucet”.
PISVBTC1214 3/8 1/2 1/4 Turn Valves are indicated by this marker ‘•’
