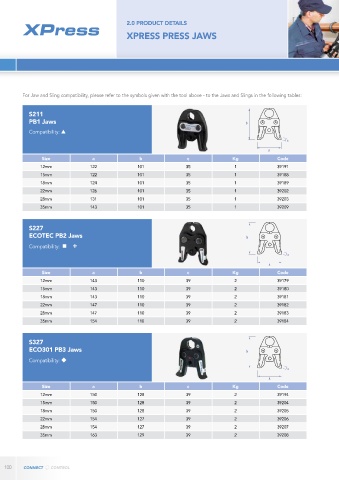

Page 100 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

2.0 PRODUCT DETAILS

XPRESS PRESS JAWS

For Jaw and Sling compatibility, please refer to the symbols given with the tool above - to the Jaws and Slings in the following tables:

S211
PB1 Jaws b b
b b
Compatibility: ▲
c c c c
a a a a
Size a b c Kg Code
12mm 122 101 35 1 39191
15mm 122 101 35 1 39188
18mm 124 101 35 1 39189
22mm 126 101 35 1 39202
28mm 131 101 35 1 39203
35mm 143 101 35 1 39209

S227
ECOTEC PB2 Jaws b b
b b
Compatibility: n +
c c c c

a a a a
Size a b c Kg Code
12mm 143 110 39 2 39179
15mm 143 110 39 2 39180
18mm 143 110 39 2 39181
22mm 147 110 39 2 39182
28mm 147 110 39 2 39183
35mm 154 110 39 2 39184

S327
ECO301 PB3 Jaws b b
b b
Compatibility: u
c c c c
a a a a
Size a b c Kg Code
12mm 150 128 39 2 39194
15mm 150 128 39 2 39204
18mm 150 128 39 2 39205
22mm 154 127 39 2 39206
28mm 154 127 39 2 39207
35mm 163 129 39 2 39208

100
