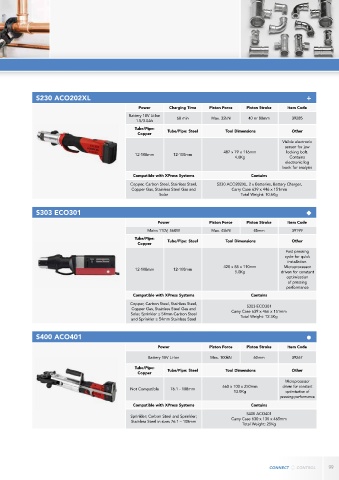

Page 99 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

S230 ACO202XL +

Power Charging Time Piston Force Piston Stroke Item Code
Battery 18V Li-Ion
1.5/3.0Ah 60 min Max. 32kN 40 or 80mm 39285
Tube/Pipe: Tube/Pipe: Steel Tool Dimensions Other
Copper
Visible electronic
sensor for jaw
487 x 79 x 116mm locking bolt.
12-108mm 12-108mm
4.6Kg Contains
electronic log
book for analysis
Compatible with XPress Systems Contains
Copper, Carbon Steel, Stainless Steel, S230 ACO202XL, 2 x Batteries, Battery Charger,
Copper Gas, Stainless Steel Gas and Carry Case 639 x 446 x 151mm
Solar Total Weight: 10.6Kg

S303 ECO301 u
Power Piston Force Piston Stroke Item Code
Mains 110V, 560W Max. 45kN 45mm 39199
Tube/Pipe: Tube/Pipe: Steel Tool Dimensions Other
Copper
Fast pressing
cycle for quick
installation.
420 x 85 x 110mm Microprocessor
12-108mm 12-108mm
5.0Kg driven for constant
optimisation
of pressing
performance
Compatible with XPress Systems Contains
Copper, Carbon Steel, Stainless Steel, S303 ECO301
Copper Gas, Stainless Steel Gas and Carry Case 639 x 466 x 151mm
Solar, Sprinkler ≤ 54mm Carbon Steel Total Weight: 12.3Kg
and Sprinkler ≤ 54mm Stainless Steel

S400 ACO401 ●

Power Piston Force Piston Stroke Item Code
Battery 18V Li-Ion Max. 100kN 60mm 39267
Tube/Pipe:
Copper Tube/Pipe: Steel Tool Dimensions Other
Microprocessor
660 x 100 x 250mm driven for constant
Not Compatible 76.1 - 108mm
13.0Kg optimisation of
pressing performance
Compatible with XPress Systems Contains
S400 ACO401
Sprinkler; Carbon Steel and Sprinkler;
Stainless Steel in sizes 76.1 – 108mm Carry Case 630 x 130 x 465mm
Total Weight: 25Kg

99
