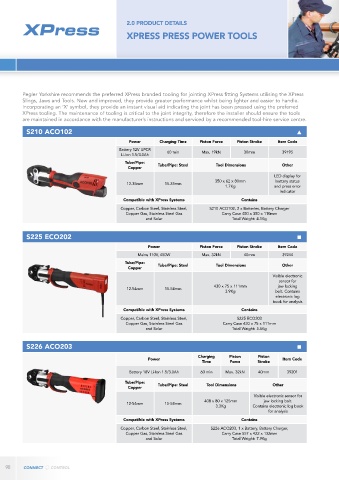

Page 98 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

2.0 PRODUCT DETAILS

XPRESS PRESS POWER TOOLS

Pegler Yorkshire recommends the preferred XPress branded tooling for jointing XPress fitting Systems utilising the XPress
Slings, Jaws and Tools. New and improved, they provide greater performance whilst being lighter and easier to handle.
Incorporating an ‘X’ symbol, they provide an instant visual aid indicating the joint has been pressed using the preferred
XPress tooling. The maintenance of tooling is critical to the joint integrity, therefore the installer should ensure the tools
are maintained in accordance with the manufacturer’s instructions and serviced by a recommended tool-hire service centre.
S210 ACO102 ▲
Power Charging Time Piston Force Piston Stroke Item Code
Battery 12V UPCR 60 min Max. 19kN 30mm 39195
Li-Ion 1.5/3.0Ah
Tube/Pipe:
Copper Tube/Pipe: Steel Tool Dimensions Other
LED display for
350 x 62 x 80mm battery status
12-35mm 15-35mm
1.7Kg and press error
indicator
Compatible with XPress Systems Contains
Copper, Carbon Steel, Stainless Steel, S210 ACO102, 2 x Batteries, Battery Charger
Copper Gas, Stainless Steel Gas Carry Case 480 x 350 x 110mm
and Solar Total Weight: 4.1Kg

S225 ECO202 n

Power Piston Force Piston Stroke Item Code
Mains 110V, 450W Max. 32kN 40mm 39244
Tube/Pipe:
Copper Tube/Pipe: Steel Tool Dimensions Other
Visible electronic
sensor for
430 x 75 x 111mm jaw locking
12-54mm 15-54mm
3.9Kg bolt. Contains
electronic log
book for analysis
Compatible with XPress Systems Contains
Copper, Carbon Steel, Stainless Steel, S225 ECO203
Copper Gas, Stainless Steel Gas Carry Case 430 x 75 x 111mm
and Solar Total Weight: 5.5Kg

S226 ACO203 n

Charging Piston Piston
Power Item Code
Time Force Stroke
Battery 18V Li-Ion 1.5/3.0Ah 60 min Max. 32kN 40mm 39201
Tube/Pipe: Tube/Pipe: Steel Tool Dimensions Other
Copper
Visible electronic sensor for
408 x 80 x 125mm jaw locking bolt.
12-54mm 15-54mm
3.3Kg Contains electronic log book
for analysis
Compatible with XPress Systems Contains
Copper, Carbon Steel, Stainless Steel, S226 ACO203, 1 x Battery, Battery Charger,
Copper Gas, Stainless Steel Gas Carry Case 557 x 422 x 132mm
and Solar Total Weight: 7.9Kg
