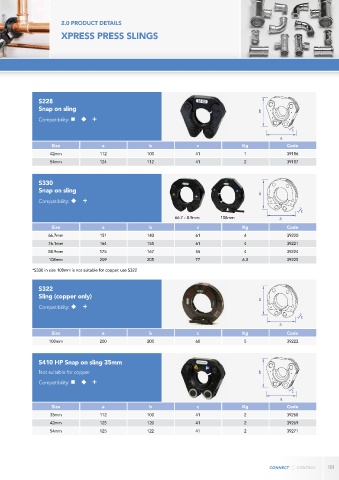

2.0 PRODUCT DETAILS

XPRESS PRESS SLINGS

S228
Snap on sling b
Compatibility: n u +

c
a
Size a b c Kg Code
42mm 112 100 41 1 39186
54mm 124 112 41 2 39187

S330
Snap on sling b
Compatibility: u +

c
66.7 - 8.9mm 108mm a
Size a b c Kg Code
66.7mm 151 143 61 4 39220
76.1mm 164 155 61 4 39221
88.9mm 175 167 55 4 39224
108mm 209 205 77 6.3 39225

*S330 in size 108mm is not suitable for copper, use S322

S322
Sling (copper only)
b
Compatibility: u +

c
a
Size a b c Kg Code
108mm 200 200 60 5 39222

S410 HP Snap on sling 35mm
Not suitable for copper b
Compatibility: n u +
c
a
Size a b c Kg Code
35mm 112 100 41 2 39268
42mm 125 120 41 2 39269
54mm 125 122 41 2 39271
