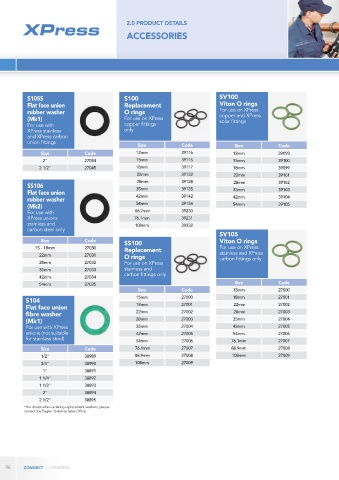

2.0 PRODUCT DETAILS

ACCESSORIES

S105S S100 SV100
Flat face union Replacement Viton O rings
rubber washer O rings For use on XPress
copper and XPress
(Mk1) For use on XPress solar fittings
For use with copper fittings
XPress stainless only
and XPress carbon
union fittings
Size Code Size Code
Size Code 12mm 39116 12mm 39098
2" 27044 15mm 39115 15mm 39100
2 1/2" 27045 18mm 39117 18mm 39099
22mm 39122 22mm 39101
28mm 39128 28mm 39102
SS106
Flat face union 35mm 39135 35mm 39103
rubber washer 42mm 39142 42mm 39104
(Mk2) 54mm 39154 54mm 39105
For use with 66.7mm 39230
XPress unions 76.1mm 39231
stainless and 108mm 39232
carbon steel only
SV105
Size Code SS100 Viton O rings
15 - 18mm 27030 Replacement For use on XPress
22mm 27031 O rings stainless and XPress
carbon fittings only
28mm 27032 For use on XPress
35mm 27033 stainless and
42mm 27034 carbon fittings only
54mm 27035 Size Code
Size Code 15mm 27000
S104 15mm 27000 18mm 27001
Flat face union 18mm 27001 22mm 27002
fibre washer 22mm 27002 28mm 27003
(Mk1) 28mm 27003 35mm 27004
For use with XPress 35mm 27004 42mm 27005
unions (not suitable 42mm 27005 54mm 27006
for stainless steel) 54mm 27006 76.1mm 27007
Size Code 76.1mm 27007 88.9mm 27008
1/2" 38989 88.9mm 27008 108mm 27009
3/4" 38990 108mm 27009
1" 38891
1 1/4" 38892
1 1/2" 38893
2" 38894
2 1/2" 38895
