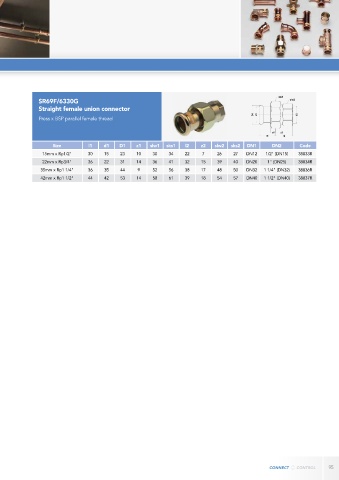

Page 95 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS
P. 95
SR69F/6330G
Straight female union connector
Press x BSP parallel female thread
Size l1 d1 D1 z1 slw1 sks1 l2 z2 slw2 sks2 DN1 DN2 Code
15mm x Rp1/2" 30 15 23 10 30 34 22 7 26 27 DN12 1/2" (DN15) 38833R
22mm x Rp3/4" 36 22 31 14 36 41 32 15 39 40 DN20 1" (DN25) 38834R
35mm x Rp1 1/4" 36 35 44 9 52 56 38 17 48 50 DN32 1 1/4" (DN32) 38836R
42mm x Rp1 1/2" 44 42 53 14 58 61 39 18 54 57 DN40 1 1/2" (DN40) 38837R
95
