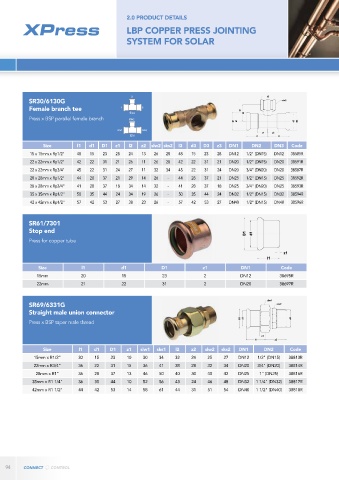

Page 94 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

2.0 PRODUCT DETAILS

LBP COPPER PRESS JOINTING
SYSTEM FOR SOLAR

3
SR30/6130G
Female branch tee 1 2
Size
Press x BSP parallel female branch DN2

DN1 DN3
DN
Size l1 d1 D1 z1 l2 z2 slw2 sks2 l3 d3 D3 z3 DN1 DN2 DN3 Code
15 x 15mm x Rp1/2" 48 15 23 28 24 13 26 28 48 15 23 28 DN12 1/2" (DN15) DN12 38585R
22 x 22mm x Rp1/2" 42 22 31 21 26 11 26 28 42 22 31 21 DN20 1/2" (DN15) DN20 38591R
22 x 22mm x Rp3/4" 45 22 31 24 27 11 32 34 45 22 31 24 DN20 3/4" (DN20) DN20 38587R
28 x 28mm x Rp1/2" 44 28 37 21 29 14 26 - 44 28 37 21 DN25 1/2" (DN15) DN25 38592R
28 x 28mm x Rp3/4" 41 28 37 18 34 14 32 - 41 28 37 18 DN25 3/4" (DN20) DN25 38593R
35 x 35mm x Rp1/2" 50 35 44 24 34 19 26 - 50 35 44 24 DN32 1/2" (DN15) DN32 38594R
42 x 42mm x Rp1/2" 57 42 53 27 38 23 26 - 57 42 53 27 DN40 1/2" (DN15) DN40 38596R

SR61/7301
Stop end
Press for copper tube

Size l1 d1 D1 z1 DN1 Code
15mm 20 15 23 2 DN12 38695R
22mm 21 22 31 2 DN20 38697R

SR69/6331G
Straight male union connector
Press x BSP taper male thread

Size l1 d1 D1 z1 slw1 sks1 l2 z2 slw2 sks2 DN1 DN2 Code
15mm x R1/2" 30 15 23 10 30 34 32 24 25 27 DN12 1/2" (DN15) 38813R
22mm x R3/4" 36 22 31 15 36 41 38 28 32 34 DN20 3/4" (DN20) 38814R
28mm x R1" 36 28 37 13 46 50 40 30 40 42 DN25 1" (DN25) 38816R
35mm x R1 1/4" 36 35 44 10 52 56 43 24 46 48 DN32 1 1/4" (DN32) 38817R
42mm x R1 1/2" 44 42 53 14 58 61 44 31 51 54 DN40 1 1/2" (DN40) 38818R

94
