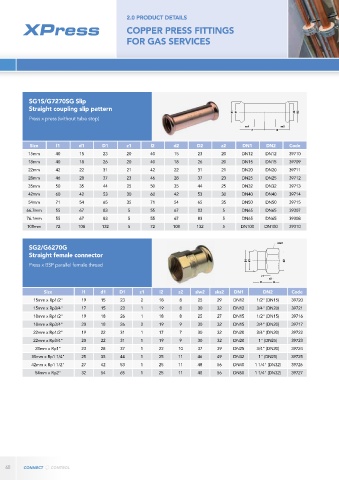

Page 68 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

2.0 PRODUCT DETAILS

COPPER PRESS FITTINGS
FOR GAS SERVICES

SG1S/G7270SG Slip
Straight coupling slip pattern
Press x press (without tube stop)

Size l1 d1 D1 z1 l2 d2 D2 z2 DN1 DN2 Code
15mm 40 15 23 20 40 15 23 20 DN12 DN12 39710
18mm 40 18 26 20 40 18 26 20 DN15 DN15 39709
22mm 42 22 31 21 42 22 31 21 DN20 DN20 39711
28mm 46 28 37 23 46 28 37 23 DN25 DN25 39712
35mm 50 35 44 25 50 35 44 25 DN32 DN32 39713
42mm 60 42 53 30 60 42 53 30 DN40 DN40 39714
54mm 71 54 65 35 71 54 65 35 DN50 DN50 39715
66.7mm 55 67 83 5 55 67 83 5 DN65 DN65 39307
76.1mm 55 67 83 5 55 67 83 5 DN65 DN65 39308
108mm 72 108 132 5 72 108 132 5 DN100 DN100 39310

SG2/G6270G
Straight female connector
Press x BSP parallel female thread

Size l1 d1 D1 z1 l2 z2 slw2 sks2 DN1 DN2 Code
15mm x Rp1/2" 19 15 23 2 18 8 25 29 DN12 1/2" (DN15) 39720
15mm x Rp3/4" 17 15 23 1 19 8 30 32 DN12 3/4" (DN20) 39721
18mm x Rp1/2" 19 18 26 1 18 8 25 27 DN15 1/2" (DN15) 39716
18mm x Rp3/4" 20 18 26 2 19 9 30 32 DN15 3/4" (DN20) 39717
22mm x Rp1/2" 19 22 31 1 17 7 30 32 DN20 3/4" (DN20) 39722
22mm x Rp3/4" 20 22 31 1 19 9 30 32 DN20 1" (DN25) 39723
28mm x Rp1" 23 28 37 1 22 10 37 39 DN25 3/4" (DN20) 39724
35mm x Rp1 1/4" 25 35 44 1 25 11 46 49 DN32 1" (DN25) 39725
42mm x Rp1 1/2" 27 42 53 1 25 11 48 56 DN40 1 1/4" (DN32) 39726
54mm x Rp2" 32 54 65 1 25 11 48 56 DN50 1 1/4" (DN32) 39727

68
