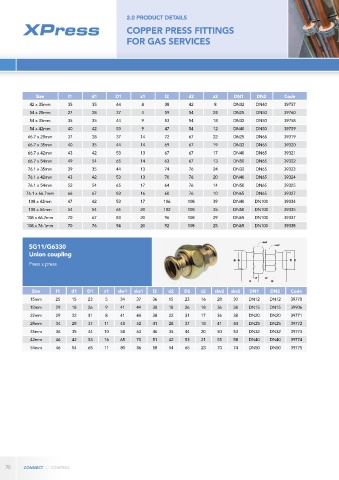

Page 70 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS
P. 70
2.0 PRODUCT DETAILS
COPPER PRESS FITTINGS
FOR GAS SERVICES
Size l1 d1 D1 z1 l2 d2 z2 DN1 DN2 Code
42 x 35mm 35 35 44 8 38 42 8 DN32 DN40 39757
54 x 28mm 27 28 37 4 59 54 24 DN25 DN50 39760
54 x 35mm 35 35 44 9 53 54 18 DN32 DN50 39758
54 x 42mm 40 42 53 9 47 54 12 DN40 DN50 39759
66.7 x 28mm 37 28 37 14 72 67 22 DN25 DN65 39319
66.7 x 35mm 40 35 44 14 69 67 19 DN32 DN65 39320
66.7 x 42mm 43 42 53 13 67 67 17 DN40 DN65 39321
66.7 x 54mm 49 54 65 14 63 67 13 DN50 DN65 39322
76.1 x 35mm 39 35 44 13 74 76 24 DN32 DN65 39323
76.1 x 42mm 43 42 53 13 70 76 20 DN40 DN65 39324
76.1 x 54mm 52 54 65 17 64 76 14 DN50 DN65 39325
76.1 x 66.7mm 66 67 83 16 60 76 10 DN65 DN65 39327
108 x 42mm 47 42 53 17 106 108 39 DN40 DN100 39334
108 x 54mm 54 54 65 20 102 108 35 DN50 DN100 39335
108 x 66.7mm 70 67 83 20 96 108 29 DN65 DN100 39337
108 x 76.1mm 70 76 94 20 92 108 25 DN65 DN100 39338
SG11/G6330
Union coupling
Press x press
Size l1 d1 D1 z1 slw1 sks1 l2 d2 D2 z2 slw2 sks2 DN1 DN2 Code
15mm 25 15 23 5 34 37 36 15 23 16 28 30 DN12 DN12 39770
18mm 29 18 26 9 41 44 38 18 26 18 36 38 DN15 DN15 39906
22mm 29 22 31 8 41 44 38 22 31 17 36 38 DN20 DN20 39771
28mm 34 28 37 11 48 52 41 28 37 18 41 44 DN25 DN25 39772
35mm 36 35 44 10 58 63 46 35 44 20 50 53 DN32 DN32 39773
42mm 46 42 53 16 65 70 51 42 53 21 55 58 DN40 DN40 39774
54mm 46 54 65 11 80 86 58 54 65 23 70 74 DN50 DN50 39775
70
