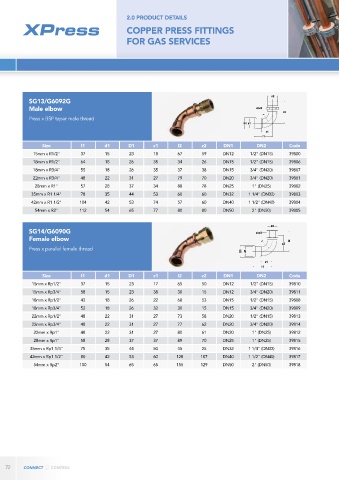

Page 72 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

2.0 PRODUCT DETAILS

COPPER PRESS FITTINGS
FOR GAS SERVICES

SG13/G6092G
Male elbow
Press x BSP taper male thread

Size l1 d1 D1 z1 l2 z2 DN1 DN2 Code
15mm x R1/2" 37 15 23 18 67 59 DN12 1/2" (DN15) 39800
18mm x R1/2" 64 18 26 35 34 26 DN15 1/2" (DN15) 39806
18mm x R3/4" 55 18 26 35 37 38 DN15 3/4" (DN20) 39807
22mm x R3/4" 48 22 31 27 79 70 DN20 3/4" (DN20) 39801
28mm x R1" 57 28 37 34 88 78 DN25 1" (DN25) 39802
35mm x R1 1/4" 78 35 44 53 60 60 DN32 1 1/4" (DN32) 39803
42mm x R1 1/2" 104 42 53 74 57 60 DN40 1 1/2" (DN40) 39804
54mm x R2" 112 54 65 77 80 80 DN50 2" (DN50) 39805

SG14/G6090G
Female elbow
Press x parallel female thread

Size l1 d1 D1 z1 l2 z2 DN1 DN2 Code
15mm x Rp1/2" 37 15 23 17 65 50 DN12 1/2" (DN15) 39810
15mm x Rp3/4" 58 15 23 38 30 15 DN12 3/4" (DN20) 39811
18mm x Rp1/2" 42 18 26 22 68 53 DN15 1/2" (DN15) 39808
18mm x Rp3/4" 52 18 26 32 30 15 DN15 3/4" (DN20) 39809
22mm x Rp1/2" 48 22 31 27 73 58 DN20 1/2" (DN15) 39813
22mm x Rp3/4" 48 22 31 27 77 62 DN20 3/4" (DN20) 39814
22mm x Rp1" 48 22 31 27 80 61 DN20 1" (DN25) 39812
28mm x Rp1" 58 28 37 37 89 70 DN25 1" (DN25) 39815
35mm x Rp1 1/4" 75 35 44 50 45 25 DN32 1 1/4" (DN32) 39816
42mm x Rp1 1/2" 80 42 53 60 128 107 DN40 1 1/2" (DN40) 39817
54mm x Rp2" 100 54 65 65 155 129 DN50 2" (DN50) 39818

72
