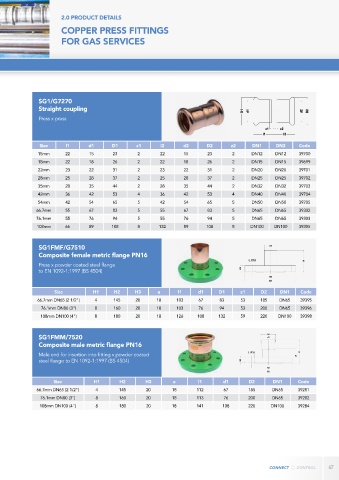

Page 67 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS
P. 67
2.0 PRODUCT DETAILS
COPPER PRESS FITTINGS
FOR GAS SERVICES
SG1/G7270
Straight coupling
Press x press
Size l1 d1 D1 z1 l2 d2 D2 z2 DN1 DN2 Code
15mm 22 15 23 2 22 15 23 2 DN12 DN12 39700
18mm 22 18 26 2 22 18 26 2 DN15 DN15 39699
22mm 23 22 31 2 23 22 31 2 DN20 DN20 39701
28mm 25 28 37 2 25 28 37 2 DN25 DN25 39702
35mm 28 35 44 2 28 35 44 2 DN32 DN32 39703
42mm 36 42 53 4 36 42 53 4 DN40 DN40 39704
54mm 42 54 65 5 42 54 65 5 DN50 DN50 39705
66.7mm 55 67 83 5 55 67 83 5 DN65 DN65 39302
76.1mm 55 76 94 5 55 76 94 5 DN65 DN65 39303
108mm 66 89 108 8 132 89 108 8 DN100 DN100 39305
SG1FMF/G7510
Composite female metric flange PN16
Press x powder coated steel flange
to EN 1092-1:1997 (BS 4504)
Size H1 H2 H3 a l1 d1 D1 z1 D2 DN1 Code
66.7mm DN65 (2 1/2") 4 145 20 18 103 67 83 53 185 DN65 39395
76.1mm DN80 (3") 8 160 20 18 103 76 94 53 200 DN65 39396
108mm DN100 (4") 8 180 20 18 126 108 132 59 220 DN100 39398
SG1FMM/7520
Composite male metric flange PN16
Male end for insertion into fitting x powder coated
steel flange to EN 1092-1:1997 (BS 4504)
Size H1 H2 H3 a l1 d1 D2 DN1 Code
66.7mm DN65 (2 1/2") 4 145 20 18 112 67 185 DN65 39281
76.1mm DN80 (3") 8 160 20 18 113 76 200 DN65 39282
108mm DN100 (4") 8 180 20 18 141 108 220 DN100 39284
