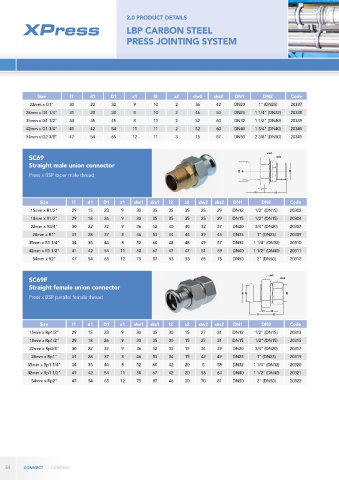

Page 64 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

2.0 PRODUCT DETAILS

LBP CARBON STEEL
PRESS JOINTING SYSTEM

Size l1 d1 D1 z1 l2 z2 slw2 sks2 DN1 DN2 Code
22mm x G1" 30 22 32 9 10 2 36 42 DN20 1" (DN25) 20337
28mm x G1 1/4" 31 28 38 8 10 2 46 53 DN25 1 1/4" (DN32) 20338
35mm x G1 1/2" 34 35 45 8 11 2 52 60 DN32 1 1/2" (DN40) 20339
42mm x G1 3/4" 41 42 54 11 11 2 52 60 DN40 1 3/4" (DN40) 20340
54mm x G2 3/8" 47 54 65 12 11 3 75 87 DN50 2 3/8" (DN50) 20341

SC69
Straight male union connector

Press x BSP taper male thread

Size l1 d1 D1 z1 slw1 sks1 l2 z2 slw2 sks2 DN1 DN2 Code
15mm x R1/2" 29 15 23 9 30 35 35 35 25 29 DN12 1/2" (DN15) 20302
18mm x R1/2" 29 18 26 9 30 35 35 35 25 29 DN15 1/2" (DN15) 20304
22mm x R3/4" 30 22 32 9 36 42 40 40 32 37 DN20 3/4" (DN20) 20307
28mm x R1" 31 28 37 8 46 53 44 44 39 45 DN25 1" (DN25) 20309
35mm x R1 1/4" 34 35 44 8 52 60 48 48 49 57 DN32 1 1/4" (DN32) 20310
42mm x R1 1/2" 41 42 54 11 58 67 47 47 51 59 DN40 1 1/2" (DN40) 20311
54mm x R2" 47 54 65 12 75 87 53 53 65 75 DN50 2" (DN50) 20312

SC69F
Straight female union connector
Press x BSP parallel female thread

Size l1 d1 D1 z1 slw1 sks1 l2 z2 slw2 sks2 DN1 DN2 Code
15mm x Rp1/2" 29 15 23 9 30 35 30 15 27 31 DN12 1/2" (DN15) 20313
18mm x Rp1/2" 29 18 26 9 30 35 30 15 27 31 DN15 1/2" (DN15) 20315
22mm x Rp3/4" 30 22 32 9 36 42 33 17 34 39 DN20 3/4" (DN20) 20317
28mm x Rp1" 31 28 37 8 46 53 34 15 42 49 DN25 1" (DN25) 20319
35mm x Rp1 1/4" 34 35 44 8 52 60 42 20 5 58 DN32 1 1/4" (DN32) 20320
42mm x Rp1 1/2" 41 42 54 11 58 67 42 20 55 64 DN40 1 1/2" (DN40) 20321
54mm x Rp2" 47 54 65 12 75 87 46 20 70 81 DN50 2" (DN50) 20322

64
