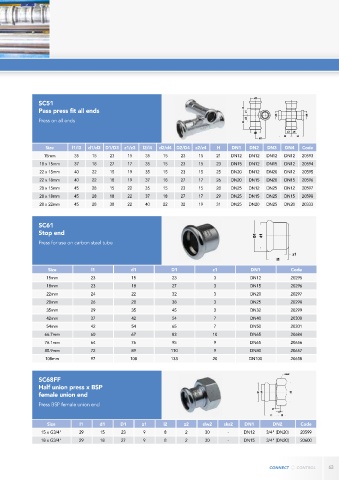

Page 63 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

SC51
Pass press fit all ends

Press on all ends

Size l1/l3 d1/d3 D1/D3 z1/z3 l2/l4 d2/d4 D2/D4 z2/z4 H DN1 DN2 DN3 DN4 Code
15mm 35 15 23 15 35 15 23 15 21 DN12 DN12 DN12 DN12 20593
18 x 15mm 37 18 27 17 35 15 23 15 23 DN15 DN12 DN15 DN12 20594
22 x 15mm 40 22 15 19 35 15 23 15 25 DN20 DN12 DN20 DN12 20595
22 x 18mm 40 22 18 19 37 18 27 17 26 DN20 DN15 DN20 DN15 20596
28 x 15mm 45 28 15 22 35 15 23 15 28 DN25 DN12 DN25 DN12 20597
28 x 18mm 45 28 18 22 37 18 27 17 29 DN25 DN15 DN25 DN15 20598
28 x 22mm 45 28 38 22 40 22 32 19 31 DN25 DN20 DN25 DN20 20333

SC61
Stop end
Press for use on carbon steel tube

Size l1 d1 D1 z1 DN1 Code
15mm 23 15 23 3 DN12 20295
18mm 23 18 27 3 DN15 20296
22mm 24 22 32 3 DN20 20297
28mm 26 28 38 3 DN25 20298
35mm 29 35 45 3 DN32 20299
42mm 37 42 54 7 DN40 20300
54mm 42 54 65 7 DN50 20301
66.7mm 60 67 83 10 DN65 20684
76.1mm 64 76 95 9 DN65 20656
88.9mm 72 89 110 9 DN80 20657
108mm 97 108 133 20 DN100 20658

SC68FF
Half union press x BSP
female union end
Press BSP female union end

Size l1 d1 D1 z1 l2 z2 slw2 sks2 DN1 DN2 Code
15 x G3/4" 29 15 23 9 8 2 30 - DN12 3/4" (DN20) 20599
18 x G3/4" 29 18 27 9 8 2 30 - DN15 3/4" (DN20) 20600
