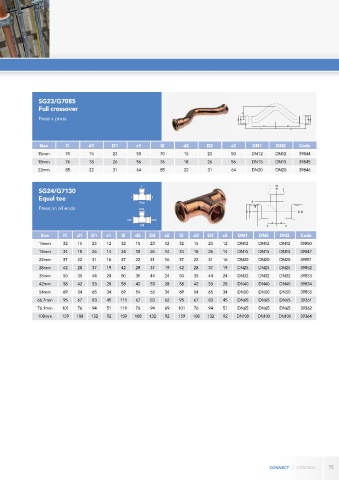

Page 75 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS
P. 75
SG23/G7085
Full crossover
Press x press
Size l1 d1 D1 z1 l2 d2 D2 z2 DN1 DN2 Code
15mm 70 15 23 50 70 15 23 50 DN12 DN12 39844
18mm 76 18 26 56 76 18 26 56 DN15 DN15 39845
22mm 85 22 31 64 85 22 31 64 DN20 DN20 39846
3
SG24/G7130
Equal tee 1 2
Size
Press on all ends DN2
DN1 DN3
DN
Size l1 d1 D1 z1 l2 d2 D2 z2 l3 d3 D3 z3 DN1 DN2 DN3 Code
15mm 32 15 23 12 32 15 23 12 32 15 23 12 DN12 DN12 DN12 39850
18mm 34 18 26 14 34 18 26 14 34 18 26 14 DN15 DN15 DN15 39847
22mm 37 22 31 16 37 22 31 16 37 22 31 16 DN20 DN20 DN20 39851
28mm 42 28 37 19 42 28 37 19 42 28 37 19 DN25 DN25 DN25 39852
35mm 50 35 44 24 50 35 44 24 50 35 44 24 DN32 DN32 DN32 39853
42mm 58 42 53 28 58 42 53 28 58 42 53 28 DN40 DN40 DN40 39854
54mm 69 54 65 34 69 54 65 34 69 54 65 34 DN50 DN50 DN50 39855
66.7mm 95 67 83 45 111 67 83 62 95 67 83 45 DN65 DN65 DN65 39361
76.1mm 101 76 94 51 119 76 94 69 101 76 94 51 DN65 DN65 DN65 39362
108mm 159 108 132 92 159 108 132 92 159 108 132 92 DN100 DN100 DN100 39364
