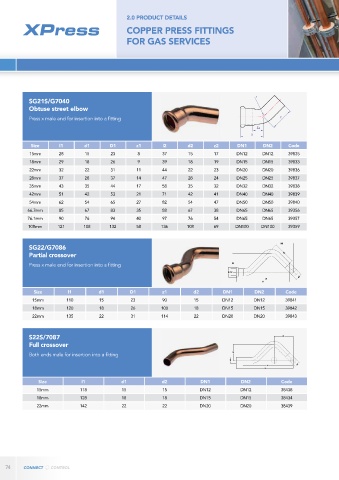

Page 74 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

2.0 PRODUCT DETAILS

COPPER PRESS FITTINGS
FOR GAS SERVICES

r
SG21S/G7040
Obtuse street elbow
Press x male end for insertion into a fitting c

Za
a
Size l1 d1 D1 z1 l2 d2 z2 DN1 DN2 Code
15mm 28 15 23 8 37 15 17 DN12 DN12 39835
18mm 29 18 26 9 39 18 19 DN15 DN15 39833
22mm 32 22 31 11 44 22 23 DN20 DN20 39836
28mm 37 28 37 14 47 28 24 DN25 DN25 39837
35mm 43 35 44 17 58 35 32 DN32 DN32 39838
42mm 51 42 53 21 71 42 41 DN40 DN40 39839
54mm 62 54 65 27 82 54 47 DN50 DN50 39840
66.7mm 85 67 83 35 88 67 38 DN65 DN65 39356
76.1mm 90 76 94 40 97 76 54 DN65 DN65 39357
108mm 121 108 132 58 136 108 69 DN100 DN100 39359

SG22/G7086
Partial crossover
Press x male end for insertion into a fitting

Size l1 d1 D1 z1 d2 DN1 DN2 Code
15mm 110 15 23 90 15 DN12 DN12 39841
18mm 120 18 26 100 18 DN15 DN15 39842
22mm 135 22 31 114 22 DN20 DN20 39843

S22S/7087
Full crossover
Both ends male for insertion into a fitting

Size l1 d1 d2 DN1 DN2 Code
15mm 118 15 15 DN12 DN12 38438
18mm 128 18 18 DN15 DN15 38434
22mm 142 22 22 DN20 DN20 38439

74
