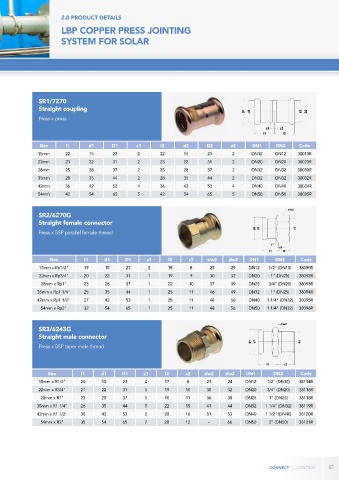

Page 87 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

2.0 PRODUCT DETAILS

LBP COPPER PRESS JOINTING
SYSTEM FOR SOLAR

SR1/7270
Straight coupling
Press x press

Size l1 d1 D1 z1 l2 d2 D2 z2 DN1 DN2 Code
15mm 22 15 23 2 22 15 23 2 DN12 DN12 38010R
22mm 23 22 31 2 23 22 31 2 DN20 DN20 38020R
28mm 25 28 37 2 25 28 37 2 DN32 DN32 38030R
35mm 28 35 44 2 28 35 44 2 DN32 DN32 38032R
42mm 36 42 53 4 36 42 53 4 DN40 DN40 38034R
54mm 42 54 65 5 42 54 65 5 DN50 DN50 38035R

SR2/6270G
Straight female connector
Press x BSP parallel female thread

Size l1 d1 D1 z1 l2 z2 slw2 sks2 DN1 DN2 Code
15mm x Rp1/2" 19 15 23 2 18 8 25 29 DN12 1/2" (DN15) 38090R
22mm x Rp3/4" 20 22 31 1 19 9 30 32 DN20 1" (DN25) 38092R
28mm x Rp1" 23 28 37 1 22 10 37 39 DN25 3/4" (DN20) 38093R
35mm x Rp1 1/4" 25 35 44 1 25 11 46 49 DN32 1" (DN25) 38094R
42mm x Rp1 1/2" 27 42 53 1 25 11 48 56 DN40 1 1/4" (DN32) 38095R
54mm x Rp2" 32 54 65 1 25 11 48 56 DN50 1 1/4" (DN32) 38096R

SR3/6243G
Straight male connector
Press x BSP taper male thread

Size l1 d1 D1 z1 l2 z2 slw2 sks2 DN1 DN2 Code
15mm x R1/2" 20 15 23 4 17 8 21 24 DN12 1/2" (DN15) 38114R
22mm x R3/4" 21 22 31 5 19 10 30 32 DN20 3/4" (DN20) 38116R
28mm x R1" 23 28 37 5 10 11 36 38 DN25 1" (DN25) 38118R
35mm x R1 1/4" 26 35 44 5 22 15 41 44 DN32 1 1/4" (DN32) 38119R
42mm x R1 1/2" 30 42 53 2 28 16 51 53 DN40 1 1/2" (DN40) 38120R
54mm x R2" 35 54 65 7 28 12 - 66 DN50 2" (DN50) 38121R

87
