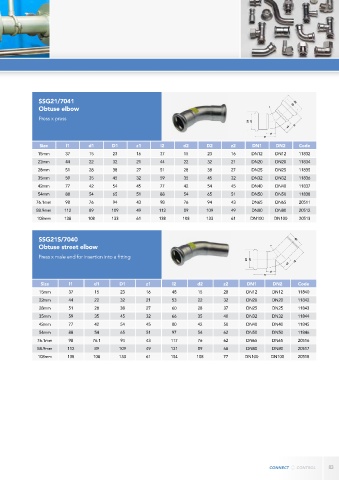

Page 83 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

SSG21/7041
Obtuse elbow
Press x press

Size l1 d1 D1 z1 l2 d2 D2 z2 DN1 DN2 Code
15mm 37 15 23 16 37 15 23 16 DN12 DN12 11832
22mm 44 22 32 21 44 22 32 21 DN20 DN20 11834
28mm 51 28 38 27 51 28 38 27 DN25 DN25 11835
35mm 59 35 45 32 59 35 45 32 DN32 DN32 11836
42mm 77 42 54 45 77 42 54 45 DN40 DN40 11837
54mm 88 54 65 51 88 54 65 51 DN50 DN50 11838
76.1mm 98 76 94 43 98 76 94 43 DN65 DN65 20511
88.9mm 112 89 109 49 112 89 109 49 DN80 DN80 20512
108mm 138 108 133 61 138 108 133 61 DN100 DN100 20513

SSG21S/7040
Obtuse street elbow

Press x male end for insertion into a fitting

Size l1 d1 D1 z1 l2 d2 z2 DN1 DN2 Code
15mm 37 15 23 16 48 15 28 DN12 DN12 11840
22mm 44 22 32 21 53 22 32 DN20 DN20 11842
28mm 51 28 38 27 60 28 37 DN25 DN25 11843
35mm 59 35 45 32 66 35 40 DN32 DN32 11844
42mm 77 42 54 45 80 42 50 DN40 DN40 11845
54mm 88 54 65 51 97 54 62 DN50 DN50 11846
76.1mm 98 76.1 94 43 117 76 62 DN65 DN65 20516
88.9mm 112 89 109 49 131 89 68 DN80 DN80 20517
108mm 138 108 133 61 154 108 77 DN100 DN100 20518

83
