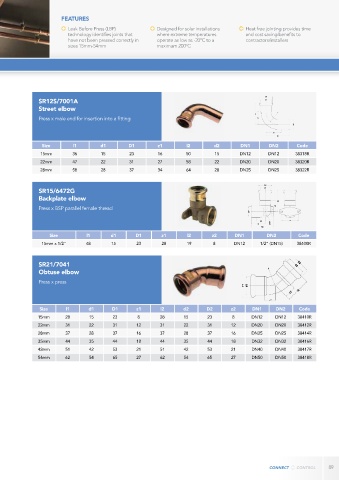

Page 89 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS
P. 89
FEATURES
Leak Before Press (LBP) Designed for solar installations Heat free jointing provides time
technology identifies joints that where extreme temperatures and cost saving benefits to
have not been pressed correctly in operate as low as -20ºC to a contractors/installers
sizes 15mm-54mm maximum 200ºC
SR12S/7001A
Street elbow
Press x male end for insertion into a fitting
Size l1 d1 D1 z1 l2 d2 DN1 DN2 Code
15mm 36 15 23 16 50 15 DN12 DN12 38318R
22mm 47 22 31 27 58 22 DN20 DN20 38320R
28mm 58 28 37 34 64 28 DN25 DN25 38322R
SR15/6472G
Backplate elbow
Press x BSP parallel female thread
Size l1 d1 D1 z1 l2 z2 DN1 DN2 Code
15mm x 1/2" 48 15 23 28 19 8 DN12 1/2" (DN15) 38400R
SR21/7041
Obtuse elbow
Press x press
Size l1 d1 D1 z1 l2 d2 D2 z2 DN1 DN2 Code
15mm 28 15 23 8 28 15 23 8 DN12 DN12 38410R
22mm 31 22 31 12 31 22 31 12 DN20 DN20 38412R
28mm 37 28 37 16 37 28 37 16 DN25 DN25 38414R
35mm 44 35 44 18 44 35 44 18 DN32 DN32 38416R
42mm 51 42 53 21 51 42 53 21 DN40 DN40 38417R
54mm 62 54 65 27 62 54 65 27 DN50 DN50 38418R
89
