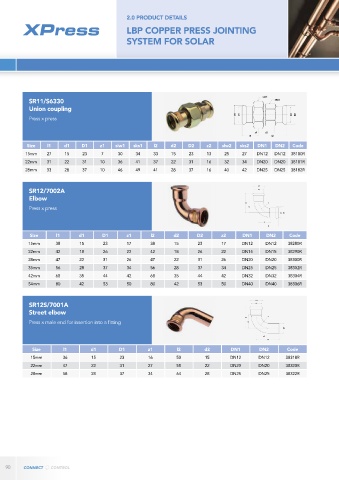

Page 90 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS
P. 90
2.0 PRODUCT DETAILS
LBP COPPER PRESS JOINTING
SYSTEM FOR SOLAR
SR11/S6330
Union coupling
Press x press
Size l1 d1 D1 z1 slw1 sks1 l2 d2 D2 z2 slw2 sks2 DN1 DN2 Code
15mm 27 15 23 7 30 34 33 15 23 13 25 27 DN12 DN12 38180R
22mm 31 22 31 10 36 41 37 22 31 16 32 34 DN20 DN20 38181R
28mm 33 28 37 10 46 49 41 28 37 16 40 42 DN25 DN25 38182R
SR12/7002A
Elbow
Press x press
Size l1 d1 D1 z1 l2 d2 D2 z2 DN1 DN2 Code
15mm 38 15 23 17 38 15 23 17 DN12 DN12 38280R
22mm 42 18 26 22 42 18 26 22 DN15 DN15 38290R
28mm 47 22 31 26 47 22 31 26 DN20 DN20 38300R
35mm 56 28 37 34 56 28 37 34 DN25 DN25 38302R
42mm 68 35 44 42 68 35 44 42 DN32 DN32 38304R
54mm 80 42 53 50 80 42 53 50 DN40 DN40 38306R
SR12S/7001A
Street elbow
Press x male end for insertion into a fitting
Size l1 d1 D1 z1 l2 d2 DN1 DN2 Code
15mm 36 15 23 16 50 15 DN12 DN12 38318R
22mm 47 22 31 27 58 22 DN20 DN20 38320R
28mm 58 28 37 34 64 28 DN25 DN25 38322R
90
