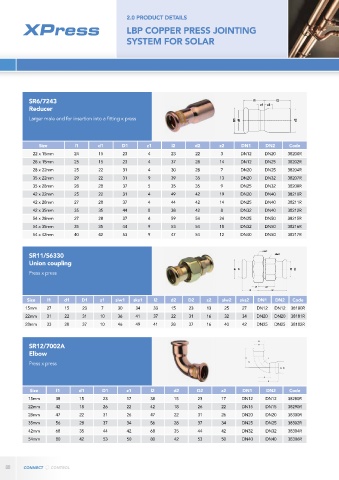

Page 88 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS
P. 88
2.0 PRODUCT DETAILS
LBP COPPER PRESS JOINTING
SYSTEM FOR SOLAR
SR6/7243
Reducer
Larger male end for insertion into a fitting x press
Size l1 d1 D1 z1 l2 d2 z2 DN1 DN2 Code
22 x 15mm 24 15 23 4 23 22 3 DN12 DN20 38200R
28 x 15mm 25 15 23 4 37 28 14 DN12 DN25 38202R
28 x 22mm 25 22 31 4 30 28 7 DN20 DN25 38204R
35 x 22mm 29 22 31 9 39 35 13 DN20 DN32 38207R
35 x 28mm 28 28 37 5 35 35 9 DN25 DN32 38208R
42 x 22mm 25 22 31 4 49 42 19 DN20 DN40 38210R
42 x 28mm 27 28 37 4 44 42 14 DN25 DN40 38211R
42 x 35mm 35 35 44 8 38 42 8 DN32 DN40 38212R
54 x 28mm 27 28 37 4 59 54 24 DN25 DN50 38215R
54 x 35mm 35 35 44 9 53 54 18 DN32 DN50 38216R
54 x 42mm 40 42 53 9 47 54 12 DN40 DN50 38217R
SR11/S6330
Union coupling
Press x press
Size l1 d1 D1 z1 slw1 sks1 l2 d2 D2 z2 slw2 sks2 DN1 DN2 Code
15mm 27 15 23 7 30 34 33 15 23 13 25 27 DN12 DN12 38180R
22mm 31 22 31 10 36 41 37 22 31 16 32 34 DN20 DN20 38181R
28mm 33 28 37 10 46 49 41 28 37 16 40 42 DN25 DN25 38182R
SR12/7002A
Elbow
Press x press
Size l1 d1 D1 z1 l2 d2 D2 z2 DN1 DN2 Code
15mm 38 15 23 17 38 15 23 17 DN12 DN12 38280R
22mm 42 18 26 22 42 18 26 22 DN15 DN15 38290R
28mm 47 22 31 26 47 22 31 26 DN20 DN20 38300R
35mm 56 28 37 34 56 28 37 34 DN25 DN25 38302R
42mm 68 35 44 42 68 35 44 42 DN32 DN32 38304R
54mm 80 42 53 50 80 42 53 50 DN40 DN40 38306R
88
