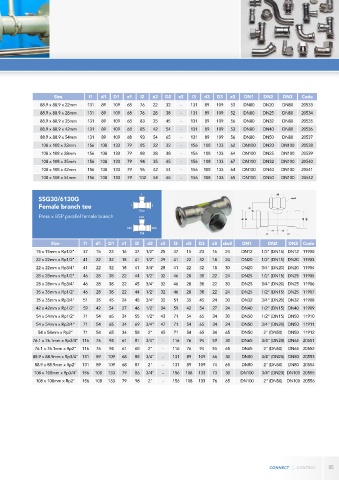

Page 85 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

Size l1 d1 D1 z1 l2 d2 D2 z2 l3 d3 D3 z3 DN1 DN2 DN3 Code
88.9 x 88.9 x 22mm 131 89 109 68 76 22 32 - 131 89 109 53 DN80 DN20 DN80 20533
88.9 x 88.9 x 28mm 131 89 109 68 76 28 38 - 131 89 109 52 DN80 DN25 DN80 20534
88.9 x 88.9 x 35mm 131 89 109 68 83 35 45 - 131 89 109 56 DN80 DN32 DN80 20535
88.9 x 88.9 x 42mm 131 89 109 68 85 42 54 - 131 89 109 53 DN80 DN40 DN80 20536
88.9 x 88.9 x 54mm 131 89 109 68 93 54 65 - 131 89 109 56 DN80 DN50 DN80 20537
108 x 108 x 22mm 156 108 133 79 85 22 32 - 156 108 133 62 DN100 DN20 DN100 20538
108 x 108 x 28mm 156 108 133 79 88 28 38 - 156 108 133 64 DN100 DN25 DN100 20539
108 x 108 x 35mm 156 108 133 79 94 35 45 - 156 108 133 67 DN100 DN32 DN100 20540
108 x 108 x 42mm 156 108 133 79 96 42 54 - 156 108 133 64 DN100 DN40 DN100 20541
108 x 108 x 54mm 156 108 133 79 102 54 65 - 156 108 133 65 DN100 DN50 DN100 20542

3
SSG30/6130G
Female branch tee 1 2
Size
Press x BSP parallel female branch DN2

DN1 DN3
DN
Size l1 d1 D1 z1 l2 d2 z2 l3 d3 D3 z3 slw2 DN1 DN2 DN3 Code
15 x 15mm x Rp1/2" 37 15 23 16 37 1/2" 25 37 15 23 16 24 DN12 1/2" (DN15) DN12 11900
22 x 22mm x Rp1/2" 41 22 32 18 41 1/2" 29 41 22 32 18 24 DN20 1/2" (DN15) DN20 11903
22 x 22mm x Rp3/4" 41 22 32 18 41 3/4" 28 41 22 32 18 30 DN20 3/4" (DN20) DN20 11904
28 x 28mm x Rp1/2" 46 28 38 22 44 1/2" 32 46 28 38 22 24 DN25 1/2" (DN15) DN25 11905
28 x 28mm x Rp3/4" 46 28 38 22 45 3/4" 32 46 28 38 22 30 DN25 3/4" (DN20) DN25 11906
35 x 35mm x Rp1/2" 46 28 38 22 44 1/2" 32 46 28 38 22 24 DN25 1/2" (DN15) DN25 11907
35 x 35mm x Rp3/4" 51 35 45 24 48 3/4" 35 51 35 45 24 30 DN32 3/4" (DN20) DN32 11908
42 x 42mm x Rp1/2" 59 42 54 27 46 1/2" 34 59 42 54 27 24 DN40 1/2" (DN15) DN40 11909
54 x 54mm x Rp1/2" 71 54 65 34 55 1/2" 43 71 54 65 34 30 DN50 1/2" (DN15) DN50 11910
54 x 54mm x Rp3/4" 71 54 65 34 69 3/4" 47 71 54 65 34 24 DN50 3/4" (DN20) DN50 11911
54 x 54mm x Rp2" 71 54 65 34 58 2" 45 71 54 65 34 65 DN50 2" (DN50) DN50 11912
76.1 x 76.1mm x Rp3/4" 116 76 94 61 81 3/4" - 116 76 94 59 30 DN65 3/4" (DN20) DN65 20551
76.1 x 76.1mm x Rp2" 116 76 94 61 68 2" - 116 76 94 55 65 DN65 2" (DN50) DN65 20552
88.9 x 88.9mm x Rp3/4" 131 89 109 68 88 3/4" - 131 89 109 66 30 DN80 3/4" (DN20) DN80 20553
88.9 x 88.9mm x Rp2" 131 89 109 68 87 2" - 131 89 109 74 65 DN80 2" (DN50) DN80 20554
108 x 108mm x Rp3/4" 156 108 133 79 86 3/4" - 156 108 133 73 30 DN100 3/4" (DN20) DN100 20555
108 x 108mm x Rp2" 156 108 133 79 98 2" - 156 108 133 76 65 DN100 2" (DN50) DN100 20556

85
