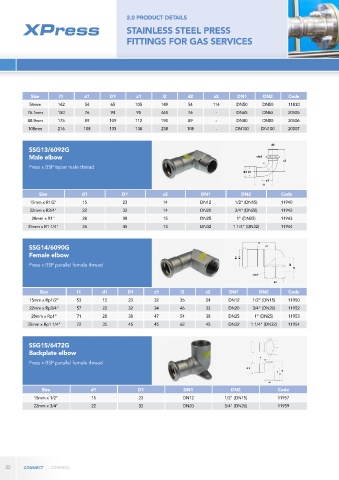

Page 82 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

2.0 PRODUCT DETAILS

STAINLESS STEEL PRESS
FITTINGS FOR GAS SERVICES

Size l1 d1 D1 z1 l2 d2 z2 DN1 DN2 Code
54mm 142 54 65 105 149 54 114 DN50 DN50 11830
76.1mm 150 76 94 95 465 76 - DN65 DN65 20505
88.9mm 175 89 109 112 190 89 - DN80 DN80 20506
108mm 216 108 133 138 238 108 - DN100 DN100 20507

SSG13/6092G
Male elbow
Press x BSP taper male thread

Size d1 D1 z2 DN1 DN2 Code
15mm x R1/2" 15 23 14 DN12 1/2" (DN15) 11940
22mm x R3/4" 22 32 14 DN20 3/4" (DN20) 11942
28mm x R1" 28 38 15 DN25 1" (DN25) 11943
35mm x R1 1/4" 35 45 13 DN32 1 1/4" (DN32) 11944

SSG14/6090G
Female elbow
Press x BSP parallel female thread

Size l1 d1 D1 z1 l2 z2 DN1 DN2 Code
15mm x Rp1/2" 53 15 23 32 36 24 DN12 1/2" (DN15) 11950
22mm x Rp3/4" 57 22 32 34 46 33 DN20 3/4" (DN20) 11952
28mm x Rp1" 71 28 38 47 54 38 DN25 1" (DN25) 11953
35mm x Rp1 1/4" 72 35 45 45 62 45 DN32 1 1/4" (DN32) 11954

SSG15/6472G
Backplate elbow

Press x BSP parallel female thread

Size d1 D1 DN1 DN2 Code
15mm x 1/2" 15 23 DN12 1/2" (DN15) 11957
22mm x 3/4" 22 32 DN20 3/4" (DN20) 11959

82
