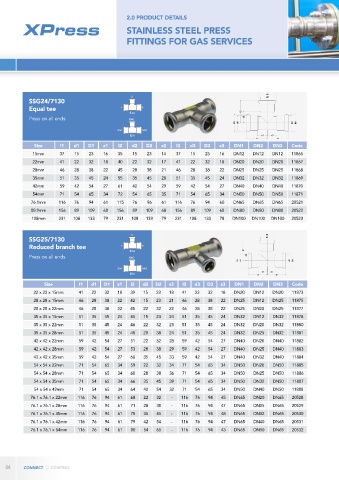

Page 84 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

2.0 PRODUCT DETAILS

STAINLESS STEEL PRESS
FITTINGS FOR GAS SERVICES

3
SSG24/7130
Equal tee 1 2
Size
Press on all ends DN2

DN1 DN3
DN
Size l1 d1 D1 z1 l2 d2 D2 z2 l3 d3 D3 z3 DN1 DN2 DN3 Code
15mm 37 15 23 16 35 15 23 14 37 15 23 16 DN12 DN12 DN12 11865
22mm 41 22 32 18 40 22 32 17 41 22 32 18 DN20 DN20 DN20 11867
28mm 46 28 38 22 45 28 38 21 46 28 38 22 DN25 DN25 DN25 11868
35mm 51 35 45 24 55 35 45 28 51 35 45 24 DN32 DN32 DN32 11869
42mm 59 42 54 27 61 42 54 29 59 42 54 27 DN40 DN40 DN40 11870
54mm 71 54 65 34 72 54 65 35 71 54 65 34 DN50 DN50 DN50 11871
76.1mm 116 76 94 61 115 76 96 61 116 76 94 60 DN65 DN65 DN65 20521
88.9mm 156 89 109 68 156 89 109 68 156 89 109 68 DN80 DN80 DN80 20522
108mm 231 108 133 79 231 108 133 79 231 108 133 78 DN100 DN100 DN100 20523

3
SSG25/7130
Reduced branch tee 1 2
Size
Press on all ends DN2
DN1 DN3
DN
Size l1 d1 D1 z1 l2 d2 D2 z2 l3 d3 D3 z3 DN1 DN2 DN3 Code
22 x 22 x 15mm 41 22 32 18 39 15 23 18 41 22 32 18 DN20 DN12 DN20 11873
28 x 28 x 15mm 46 28 38 22 42 15 23 21 46 28 38 22 DN25 DN12 DN25 11875
28 x 28 x 22mm 46 28 38 22 45 22 32 22 46 28 38 22 DN25 DN20 DN25 11877
35 x 35 x 15mm 51 35 45 24 45 15 23 24 51 35 45 24 DN32 DN12 DN32 11878
35 x 35 x 22mm 51 35 45 24 46 22 32 23 51 35 45 24 DN32 DN20 DN32 11880
35 x 35 x 28mm 51 35 45 24 48 28 38 24 51 35 45 24 DN32 DN25 DN32 11881
42 x 42 x 22mm 59 42 54 27 51 22 32 28 59 42 54 27 DN40 DN20 DN40 11882
42 x 42 x 28mm 59 42 54 27 53 28 38 29 59 42 54 27 DN40 DN25 DN40 11883
42 x 42 x 35mm 59 42 54 27 60 35 45 33 59 42 54 27 DN40 DN32 DN40 11884
54 x 54 x 22mm 71 54 65 34 59 22 32 34 71 54 65 34 DN50 DN20 DN50 11885
54 x 54 x 28mm 71 54 65 34 60 28 38 36 71 54 65 34 DN50 DN25 DN50 11886
54 x 54 x 35mm 71 54 65 34 66 35 45 39 71 54 65 34 DN50 DN32 DN50 11887
54 x 54 x 42mm 71 54 65 34 64 42 54 32 71 54 65 34 DN50 DN40 DN50 11888
76.1 x 76.1 x 22mm 116 76 94 61 68 22 32 - 116 76 94 45 DN65 DN20 DN65 20528
76.1 x 76.1 x 28mm 116 76 94 61 71 28 38 - 116 76 94 47 DN65 DN25 DN65 20529
76.1 x 76.1 x 35mm 116 76 94 61 75 35 45 - 116 76 94 48 DN65 DN32 DN65 20530
76.1 x 76.1 x 42mm 116 76 94 61 79 42 54 - 116 76 94 47 DN65 DN40 DN65 20531
76.1 x 76.1 x 54mm 116 76 94 61 80 54 65 - 116 76 94 43 DN65 DN50 DN65 20532
