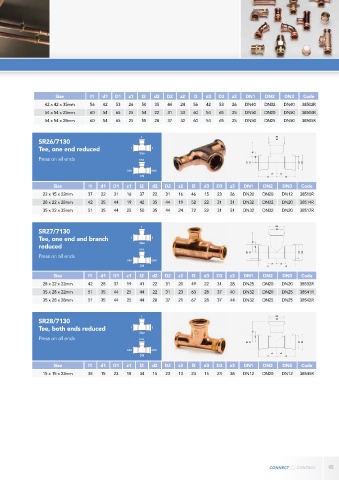

Page 93 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

Size l1 d1 D1 z1 l2 d2 D2 z2 l3 d3 D3 z3 DN1 DN2 DN3 Code
42 x 42 x 35mm 56 42 53 26 50 35 44 24 56 42 53 26 DN40 DN32 DN40 38502R
54 x 54 x 22mm 60 54 65 25 54 22 31 33 60 54 65 25 DN50 DN20 DN50 38504R
54 x 54 x 28mm 60 54 65 25 55 28 37 32 60 54 65 25 DN50 DN25 DN50 38505R

3
SR26/7130
Tee, one end reduced 1 2
Size
Press on all ends DN2

DN1 DN3
DN
Size l1 d1 D1 z1 l2 d2 D2 z2 l3 d3 D3 z3 DN1 DN2 DN3 Code
22 x 15 x 22mm 37 22 31 16 37 22 31 16 46 15 23 26 DN20 DN20 DN12 38510R
28 x 22 x 28mm 42 35 44 19 42 35 44 19 52 22 31 31 DN32 DN32 DN20 38514R
35 x 22 x 35mm 51 35 44 25 50 35 44 24 72 22 31 51 DN32 DN32 DN20 38517R

3
SR27/7130
Tee, one end and branch 1 2
reduced Size
DN2
Press on all ends
DN1 DN3
DN
Size l1 d1 D1 z1 l2 d2 D2 z2 l3 d3 D3 z3 DN1 DN2 DN3 Code
28 x 22 x 22mm 42 28 37 19 41 22 31 20 49 22 31 28 DN25 DN20 DN20 38532R
35 x 28 x 22mm 51 35 44 25 44 22 31 23 63 28 37 40 DN32 DN20 DN25 38541R
35 x 28 x 28mm 51 35 44 25 44 28 37 21 67 28 37 44 DN32 DN25 DN25 38542R

3
SR28/7130
Tee, both ends reduced 1 2
Size
Press on all ends DN2
DN1 DN3
DN
Size l1 d1 D1 z1 l2 d2 D2 z2 l3 d3 D3 z3 DN1 DN2 DN3 Code
15 x 15 x 22mm 38 15 23 18 34 15 23 13 23 15 23 38 DN12 DN20 DN12 38545R

93
