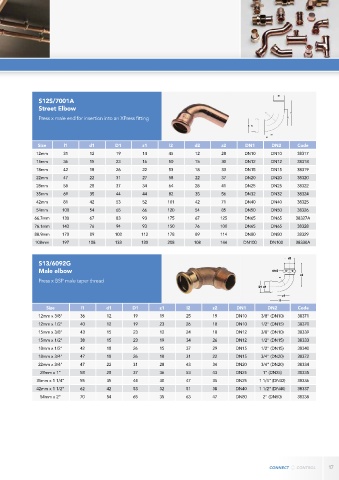

Page 17 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

S12S/7001A
Street Elbow
Press x male end for insertion into an XPress fitting

Size l1 d1 D1 z1 l2 d2 z2 DN1 DN2 Code
12mm 31 12 19 14 45 12 28 DN10 DN10 38317
15mm 36 15 23 16 50 15 30 DN12 DN12 38318
18mm 42 18 26 22 53 18 33 DN15 DN15 38319
22mm 47 22 31 27 58 22 37 DN20 DN20 38320
28mm 58 28 37 34 64 28 41 DN25 DN25 38322
35mm 69 35 44 44 82 35 56 DN32 DN32 38324
42mm 81 42 53 52 101 42 71 DN40 DN40 38325
54mm 100 54 65 66 120 54 85 DN50 DN50 38326
66.7mm 130 67 83 93 175 67 125 DN65 DN65 38327A
76.1mm 143 76 94 93 150 76 100 DN65 DN65 38328
88.9mm 170 89 108 112 178 89 114 DN80 DN80 38329
108mm 197 108 133 130 208 108 144 DN100 DN100 38330A

S13/6092G
Male elbow

Press x BSP male taper thread

Size l1 d1 D1 z1 l2 z2 DN1 DN2 Code
12mm x 3/8" 36 12 19 19 25 19 DN10 3/8" (DN10) 38371
12mm x 1/2" 40 12 19 23 26 18 DN10 1/2" (DN15) 38370
15mm x 3/8" 43 15 23 12 24 18 DN12 3/8" (DN10) 38339
15mm x 1/2" 38 15 23 19 34 26 DN12 1/2" (DN15) 38333
18mm x 1/2" 42 18 26 15 37 29 DN15 1/2" (DN15) 38340
18mm x 3/4" 47 18 26 18 31 22 DN15 3/4" (DN20) 38372
22mm x 3/4" 47 22 31 28 43 34 DN20 3/4" (DN20) 38334
28mm x 1" 58 28 37 36 53 43 DN25 1" (DN25) 38335
35mm x 1 1/4" 55 35 44 30 47 35 DN25 1 1/4" (DN32) 38336
42mm x 1 1/2" 62 42 53 32 51 38 DN40 1 1/2" (DN40) 38337
54mm x 2" 70 54 65 35 63 47 DN80 2" (DN50) 38338

17
