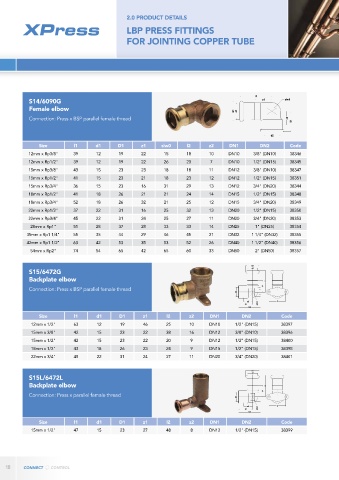

Page 18 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

2.0 PRODUCT DETAILS

LBP PRESS FITTINGS
FOR JOINTING COPPER TUBE

S14/6090G
Female elbow
Connection: Press x BSP parallel female thread

Size l1 d1 D1 z1 slw0 l2 z2 DN1 DN2 Code
12mm x Rp3/8" 39 12 19 22 15 18 10 DN10 3/8" (DN10) 38346
12mm x Rp1/2" 39 12 19 22 26 20 7 DN10 1/2" (DN15) 38345
15mm x Rp3/8" 43 15 23 23 18 18 11 DN12 3/8" (DN10) 38347
15mm x Rp1/2" 41 15 23 21 18 23 12 DN12 1/2" (DN15) 38351
15mm x Rp3/4" 36 15 23 16 31 29 13 DN12 3/4" (DN20) 38344
18mm x Rp1/2" 41 18 26 21 21 24 14 DN15 1/2" (DN15) 38348
18mm x Rp3/4" 52 18 26 32 21 25 12 DN15 3/4" (DN20) 38349
22mm x Rp1/2" 37 22 31 16 25 32 13 DN20 1/2" (DN15) 38350
22mm x Rp3/4" 45 22 31 24 25 27 11 DN20 3/4" (DN20) 38353
28mm x Rp1" 51 28 37 28 33 33 14 DN25 1" (DN25) 38354
35mm x Rp1 1/4" 55 35 44 29 46 45 21 DN32 1 1/4" (DN32) 38355
42mm x Rp1 1/2" 63 42 53 35 53 52 26 DN40 1 1/2" (DN40) 38356
54mm x Rp2" 74 54 65 42 65 60 33 DN50 2" (DN50) 38357

S15/6472G
Backplate elbow

Connection: Press x BSP parallel female thread

Size l1 d1 D1 z1 l2 z2 DN1 DN2 Code
12mm x 1/2" 63 12 19 46 25 10 DN10 1/2" (DN15) 38397
15mm x 3/8" 42 15 23 22 38 16 DN12 3/8" (DN10) 38396
15mm x 1/2" 42 15 23 22 20 9 DN12 1/2" (DN15) 38400
18mm x 1/2" 43 18 26 23 24 9 DN15 1/2" (DN15) 38398
22mm x 3/4" 45 22 31 24 27 11 DN20 3/4" (DN20) 38401

S15L/6472L
Backplate elbow
Connection: Press x parallel female thread

Size l1 d1 D1 z1 l2 z2 DN1 DN2 Code
15mm x 1/2" 47 15 23 27 48 8 DN12 1/2" (DN15) 38399
