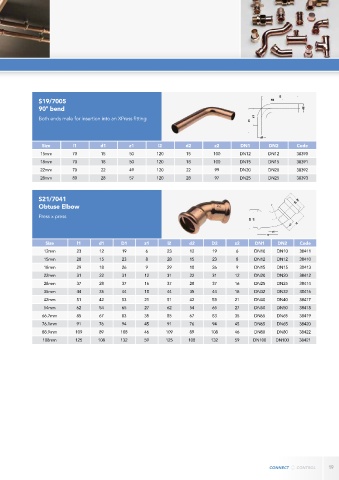

P. 19
S19/7005
90º bend
Both ends male for insertion into an XPress fitting
Size l1 d1 z1 l2 d2 z2 DN1 DN2 Code
15mm 70 15 50 120 15 100 DN12 DN12 38390
18mm 70 18 50 120 18 100 DN15 DN15 38391
22mm 70 22 49 120 22 99 DN20 DN20 38392
28mm 80 28 57 120 28 97 DN25 DN25 38393
S21/7041
Obtuse Elbow
Press x press
Size l1 d1 D1 z1 l2 d2 D2 z2 DN1 DN2 Code
12mm 23 12 19 6 23 12 19 6 DN10 DN10 38411
15mm 28 15 23 8 28 15 23 8 DN12 DN12 38410
18mm 29 18 26 9 29 18 26 9 DN15 DN15 38413
22mm 31 22 31 12 31 22 31 12 DN20 DN20 38412
28mm 37 28 37 16 37 28 37 16 DN25 DN25 38414
35mm 44 35 44 18 44 35 44 18 DN32 DN32 38416
42mm 51 42 53 21 51 42 53 21 DN40 DN40 38417
54mm 62 54 65 27 62 54 65 27 DN50 DN50 38418
66.7mm 85 67 83 35 85 67 83 35 DN65 DN65 38419
76.1mm 91 76 94 45 91 76 94 45 DN65 DN65 38420
88.9mm 109 89 108 46 109 89 108 46 DN80 DN80 38422
108mm 125 108 132 59 125 108 132 59 DN100 DN100 38421
