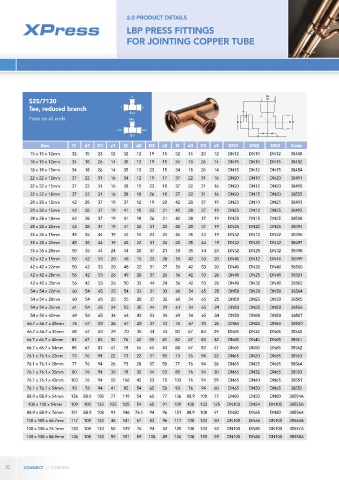

Page 22 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

2.0 PRODUCT DETAILS

LBP PRESS FITTINGS
FOR JOINTING COPPER TUBE

3
S25/7130
Tee, reduced branch 1 2
Size
Press on all ends DN2

DN1 DN3
DN
Size l1 d1 D1 z1 l2 d2 D2 z2 l3 d3 D3 z3 DN1 DN2 DN3 Code
15 x 15 x 12mm 32 15 23 12 32 12 19 15 32 15 23 12 DN12 DN10 DN12 38488
18 x 18 x 12mm 34 18 26 14 35 12 19 15 34 18 26 14 DN15 DN10 DN15 38452
18 x 18 x 15mm 34 18 26 14 35 15 23 15 34 18 26 14 DN15 DN12 DN15 38454
22 x 22 x 12mm 37 22 31 16 34 12 19 17 37 22 31 16 DN20 DN10 DN20 38491
22 x 22 x 15mm 37 22 31 16 38 15 23 18 37 22 31 16 DN20 DN12 DN20 38490
22 x 22 x 18mm 37 22 31 16 38 18 26 18 37 22 31 16 DN20 DN15 DN20 38535
28 x 28 x 12mm 42 28 37 19 37 12 19 20 42 28 37 19 DN25 DN10 DN25 38493
28 x 28 x 15mm 42 28 37 19 41 15 23 21 42 28 37 19 DN25 DN12 DN25 38492
28 x 28 x 18mm 42 28 37 19 41 18 26 21 42 28 37 19 DN25 DN15 DN25 38538
28 x 28 x 22mm 42 28 37 19 41 22 31 20 42 28 37 19 DN25 DN20 DN25 38494
35 x 35 x 15mm 45 35 44 19 44 15 23 24 45 35 44 19 DN32 DN12 DN32 38496
35 x 35 x 22mm 45 35 44 19 45 22 31 24 45 35 44 19 DN32 DN20 DN32 38497
35 x 35 x 28mm 50 35 44 24 44 28 37 21 50 35 44 24 DN32 DN25 DN32 38498
42 x 42 x 15mm 50 42 53 20 48 15 23 28 50 42 53 20 DN40 DN12 DN40 38499
42 x 42 x 22mm 50 42 53 20 48 22 31 27 50 42 53 20 DN40 DN20 DN40 38500
42 x 42 x 28mm 56 42 53 26 49 28 37 26 56 42 53 26 DN40 DN25 DN40 38501
42 x 42 x 35mm 56 42 53 26 50 35 44 24 56 42 53 26 DN40 DN32 DN40 38502
54 x 54 x 22mm 60 54 65 25 54 22 31 33 60 54 65 25 DN50 DN20 DN50 38504
54 x 54 x 28mm 60 54 65 25 55 28 37 32 60 54 65 25 DN50 DN25 DN50 38505
54 x 54 x 35mm 61 54 65 24 55 35 44 29 61 54 65 24 DN50 DN32 DN50 38506
54 x 54 x 42mm 69 54 65 34 64 42 53 34 69 54 65 34 DN50 DN40 DN50 38507
66.7 x 66.7 x 28mm 76 67 83 26 67 28 37 43 76 67 83 26 DN65 DN25 DN65 38550
66.7 x 66.7 x 35mm 80 67 83 29 70 35 44 43 80 67 83 29 DN65 DN32 DN65 38560
66.7 x 66.7 x 42mm 82 67 83 32 76 42 53 41 82 67 83 32 DN65 DN40 DN65 38561
66.7 x 66.7 x 54mm 88 67 83 47 78 54 65 43 88 67 83 47 DN65 DN50 DN65 38562
76.1 x 76.1 x 22mm 73 76 94 22 73 22 31 50 73 76 94 22 DN65 DN20 DN65 38563
76.1 x 76.1 x 28mm 77 76 94 26 73 28 37 50 77 76 94 26 DN65 DN25 DN65 38564
76.1 x 76.1 x 35mm 80 76 94 30 78 35 44 53 80 76 94 30 DN65 DN32 DN65 38553
76.1 x 76.1 x 42mm 103 76 94 55 106 42 53 70 103 76 94 55 DN65 DN40 DN65 38551
76.1 x 76.1 x 54mm 93 76 94 41 85 54 65 50 93 76 94 60 DN65 DN50 DN65 38552
88.9 x 88.9 x 54mm 136 88.9 108 77 119 54 65 77 136 88.9 108 77 DN80 DN50 DN80 38554A
108 x 108 x 54mm 109 108 133 125 125 54 65 91 109 108 133 125 DN100 DN54 DN100 38555A
88.9 x 88.9 x 76mm 151 88.9 108 91 146 76.1 94 96 151 88.9 108 91 DN80 DN65 DN80 38556A
108 x 108 x 66.7mm 117 108 133 46 141 67 83 96 117 108 133 50 DN100 DN65 DN100 38565A
108 x 108 x 76.1mm 120 108 133 52 139 76 94 52 120 108 133 53 DN100 DN80 DN100 38557A
108 x 108 x 88.9mm 126 108 133 59 151 89 108 89 126 108 133 59 DN100 DN80 DN100 38558A

22
