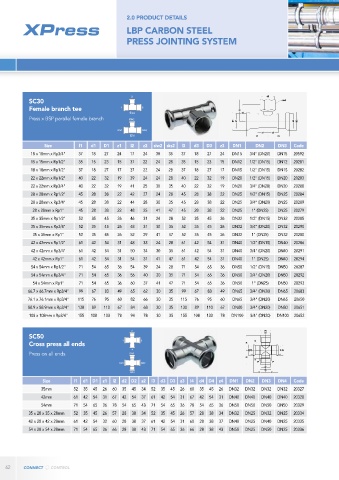

Page 62 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

2.0 PRODUCT DETAILS

LBP CARBON STEEL
PRESS JOINTING SYSTEM

3
SC30
Female branch tee 1 2
Size
Press x BSP parallel female branch DN2

DN1 DN3
DN
Size l1 d1 D1 z1 l2 z2 slw2 sks2 l3 d3 D3 z3 DN1 DN2 DN3 Code
18 x 18mm x Rp3/4" 37 18 27 24 17 24 30 35 37 18 27 24 DN15 3/4" (DN20) DN15 20592
15 x 15mm x Rp1/2" 35 15 23 15 37 22 24 28 35 15 23 15 DN12 1/2" (DN15) DN12 20281
18 x 18mm x Rp1/2" 37 18 27 17 37 22 24 28 37 18 27 17 DN15 1/2" (DN15) DN15 20282
22 x 22mm x Rp1/2" 40 22 32 19 39 24 24 28 40 22 32 19 DN20 1/2" (DN15) DN20 20283
22 x 22mm x Rp3/4" 40 22 32 19 41 25 30 35 40 22 32 19 DN20 3/4" (DN20) DN20 20288
28 x 28mm x Rp1/2" 45 28 38 22 42 27 24 28 45 28 38 22 DN25 1/2" (DN15) DN25 20284
28 x 28mm x Rp3/4" 45 28 38 22 44 28 30 35 45 28 38 22 DN25 3/4" (DN20) DN25 20289
28 x 28mm x Rp1" 45 28 38 22 48 25 41 47 45 28 38 22 DN25 1" (DN25) DN25 20279
35 x 35mm x Rp1/2" 52 35 45 26 46 31 24 28 52 35 45 26 DN32 1/2" (DN15) DN32 20285
35 x 35mm x Rp3/4" 52 35 45 26 48 31 30 35 52 35 45 26 DN32 3/4" (DN20) DN32 20290
35 x 35mm x Rp1" 52 35 45 26 52 29 41 47 52 35 45 26 DN32 1" (DN25) DN32 20280
42 x 42mm x Rp1/2" 61 42 54 31 48 33 24 28 61 42 54 31 DN40 1/2" (DN15) DN40 20286
42 x 42mm x Rp3/4" 61 42 54 31 50 34 30 35 61 42 54 31 DN40 3/4" (DN20) DN40 20291
42 x 42mm x Rp1" 61 42 54 31 54 31 41 47 61 42 54 31 DN40 1" (DN25) DN40 20294
54 x 54mm x Rp1/2" 71 54 65 36 54 39 24 28 71 54 65 36 DN50 1/2" (DN15) DN50 20287
54 x 54mm x Rp3/4" 71 54 65 36 56 40 30 35 71 54 65 36 DN50 3/4" (DN20) DN50 20292
54 x 54mm x Rp1" 71 54 65 36 60 37 41 47 71 54 65 36 DN50 1" (DN25) DN50 20293
66.7 x 66.7mm x Rp3/4" 99 67 83 49 65 62 30 35 99 67 83 49 DN65 3/4" (DN20) DN65 20683
76.1 x 76.1mm x Rp3/4" 115 76 95 60 82 66 30 35 115 76 95 60 DN65 3/4" (DN20) DN65 20650
88.9 x 88.9mm x Rp3/4" 130 89 110 67 84 68 30 35 130 89 110 67 DN80 3/4" (DN20) DN80 20651
108 x 108mm x Rp3/4" 155 108 133 78 94 78 30 35 155 108 133 78 DN100 3/4" (DN20) DN100 20652

3
SC50
Cross press all ends 1 2
4
Press on all ends DN3
DN1 DN2
DN4
Size l1 d1 D1 z1 l2 d2 D2 z2 l3 d3 D3 z3 l4 d4 D4 z4 DN1 DN2 DN3 DN4 Code
35mm 52 35 45 26 60 35 45 34 52 35 45 26 60 35 45 26 DN32 DN32 DN32 DN32 20327
42mm 61 42 54 31 67 42 54 37 61 42 54 31 67 42 54 31 DN40 DN40 DN40 DN40 20328
54mm 71 54 65 36 78 54 65 43 71 54 65 36 78 54 65 36 DN50 DN50 DN50 DN50 20329
35 x 28 x 35 x 28mm 52 35 45 26 57 28 38 34 52 35 45 26 57 28 38 34 DN32 DN25 DN32 DN25 20334
42 x 28 x 42 x 28mm 61 42 54 32 60 28 38 37 61 42 54 31 60 28 38 37 DN40 DN25 DN40 DN25 20335
54 x 28 x 54 x 28mm 71 54 65 36 66 28 38 43 71 54 65 36 66 28 38 43 DN50 DN25 DN50 DN25 20336

62
