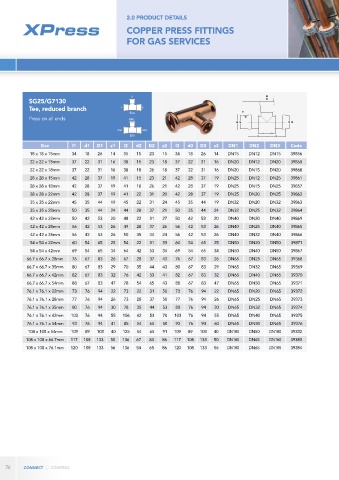

Page 76 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS
P. 76
2.0 PRODUCT DETAILS
COPPER PRESS FITTINGS
FOR GAS SERVICES
3
SG25/G7130
Tee, reduced branch 1 2
Size
Press on all ends DN2
DN1 DN3
DN
Size l1 d1 D1 z1 l2 d2 D2 z2 l3 d3 D3 z3 DN1 DN2 DN3 Code
18 x 18 x 15mm 34 18 26 14 35 15 23 15 34 18 26 14 DN15 DN12 DN15 39856
22 x 22 x 15mm 37 22 31 16 38 15 23 18 37 22 31 16 DN20 DN12 DN20 39860
22 x 22 x 18mm 37 22 31 16 38 18 26 18 37 22 31 16 DN20 DN15 DN20 39868
28 x 28 x 15mm 42 28 37 19 41 15 23 21 42 28 37 19 DN25 DN12 DN25 39861
28 x 28 x 18mm 42 28 37 19 41 18 26 21 42 28 37 19 DN25 DN15 DN25 39857
28 x 28 x 22mm 42 28 37 19 41 22 31 20 42 28 37 19 DN25 DN20 DN25 39862
35 x 35 x 22mm 45 35 44 19 45 22 31 24 45 35 44 19 DN32 DN20 DN32 39863
35 x 35 x 28mm 50 35 44 24 44 28 37 21 50 35 44 24 DN32 DN25 DN32 39864
42 x 42 x 22mm 50 42 53 20 48 22 31 27 50 42 53 20 DN40 DN20 DN40 39869
42 x 42 x 28mm 56 42 53 26 49 28 37 26 56 42 53 26 DN40 DN25 DN40 39865
42 x 42 x 35mm 56 42 53 26 50 35 44 24 56 42 53 26 DN40 DN32 DN40 39866
54 x 54 x 22mm 60 54 65 25 54 22 31 33 60 54 65 25 DN50 DN20 DN50 39871
54 x 54 x 42mm 69 54 65 34 64 42 53 34 69 54 65 34 DN50 DN40 DN50 39867
66.7 x 66.7 x 28mm 76 67 83 26 67 28 37 43 76 67 83 26 DN65 DN25 DN65 39368
66.7 x 66.7 x 35mm 80 67 83 29 70 35 44 43 80 67 83 29 DN65 DN32 DN65 39369
66.7 x 66.7 x 42mm 82 67 83 32 76 42 53 41 82 67 83 32 DN65 DN40 DN65 39370
66.7 x 66.7 x 54mm 88 67 83 47 78 54 65 43 88 67 83 47 DN65 DN50 DN65 39371
76.1 x 76.1 x 22mm 73 76 94 22 73 22 31 50 73 76 94 22 DN65 DN20 DN65 39372
76.1 x 76.1 x 28mm 77 76 94 26 73 28 37 50 77 76 94 26 DN65 DN25 DN65 39373
76.1 x 76.1 x 35mm 80 76 94 30 78 35 44 53 80 76 94 30 DN65 DN32 DN65 39374
76.1 x 76.1 x 42mm 103 76 94 55 106 42 53 70 103 76 94 55 DN65 DN40 DN65 39375
76.1 x 76.1 x 54mm 93 76 94 41 85 54 65 50 93 76 94 60 DN65 DN50 DN65 39376
108 x 108 x 54mm 109 89 108 40 125 54 65 91 109 89 108 40 DN100 DN50 DN100 39382
108 x 108 x 66.7mm 117 108 133 50 136 67 83 86 117 108 133 50 DN100 DN65 DN100 39383
108 x 108 x 76.1mm 120 108 133 56 136 54 65 86 120 108 133 56 DN100 DN65 DN100 39384
