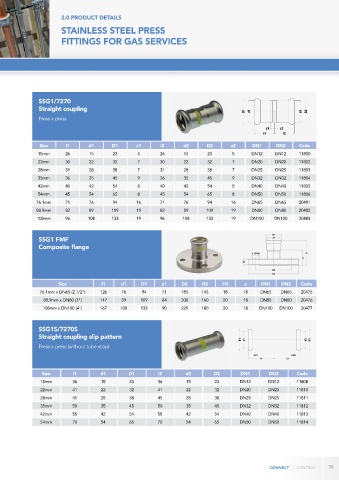

Page 79 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

2.0 PRODUCT DETAILS

STAINLESS STEEL PRESS
FITTINGS FOR GAS SERVICES

SSG1/7270
Straight coupling
Press x press

Size l1 d1 D1 z1 l2 d2 D2 z2 DN1 DN2 Code
15mm 26 15 23 5 26 15 23 5 DN12 DN12 11800
22mm 30 22 32 7 30 22 32 7 DN20 DN20 11802
28mm 31 28 38 7 31 28 38 7 DN25 DN25 11803
35mm 36 35 45 9 36 35 45 9 DN32 DN32 11804
42mm 40 42 54 8 40 42 54 8 DN40 DN40 11805
54mm 45 54 65 8 45 54 65 8 DN50 DN50 11806
76.1mm 71 76 94 16 71 76 94 16 DN65 DN65 20481
88.9mm 82 89 109 19 82 89 109 19 DN80 DN80 20482
108mm 96 108 133 19 96 108 133 19 DN100 DN100 20483

SSG1 FMF
Composite flange

Size l1 d1 D1 z1 D2 H2 H3 a DN1 DN2 Code
76.1mm x DN65 (2 1/2") 126 76 94 71 185 145 18 18 DN65 DN65 20475
88.9mm x DN80 (3") 147 89 109 84 200 160 20 18 DN80 DN80 20476
108mm x DN100 (4") 167 108 133 90 220 180 20 18 DN100 DN100 20477

SSG1S/7270S
Straight coupling slip pattern
Press x press (without tube stop)

Size l1 d1 D1 l2 d2 D2 DN1 DN2 Code
15mm 36 15 23 36 15 23 DN12 DN12 11808
22mm 41 22 32 41 22 32 DN20 DN20 11810
28mm 45 28 38 45 28 38 DN25 DN25 11811
35mm 50 35 45 50 35 45 DN32 DN32 11812
42mm 58 42 54 58 42 54 DN40 DN40 11813
54mm 70 54 65 70 54 65 DN50 DN50 11814

79
