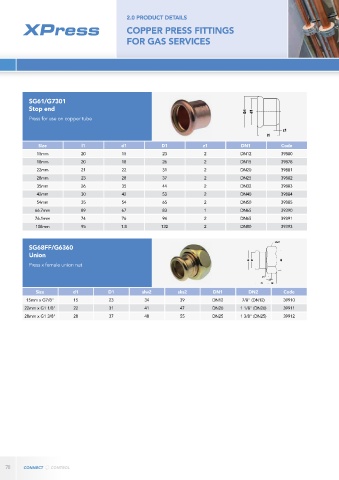

Page 78 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS
P. 78
2.0 PRODUCT DETAILS
COPPER PRESS FITTINGS
FOR GAS SERVICES
SG61/G7301
Stop end
Press for use on copper tube
Size l1 d1 D1 z1 DN1 Code
15mm 20 15 23 2 DN12 39880
18mm 20 18 26 2 DN15 39878
22mm 21 22 31 2 DN20 39881
28mm 23 28 37 2 DN25 39882
35mm 26 35 44 2 DN32 39883
42mm 30 42 53 2 DN40 39884
54mm 35 54 65 2 DN50 39885
66.7mm 89 67 83 1 DN65 39390
76.1mm 74 76 94 2 DN65 39391
108mm 95 1.8 132 2 DN80 39393
SG68FF/G6360
Union
Press x female union nut
Size d1 D1 slw2 sks2 DN1 DN2 Code
15mm x G7/8" 15 23 34 39 DN12 7/8" (DN12) 39910
22mm x G1 1/8" 22 31 41 47 DN20 1 1/8" (DN20) 39911
28mm x G1 3/8" 28 37 48 55 DN25 1 3/8" (DN25) 39912
