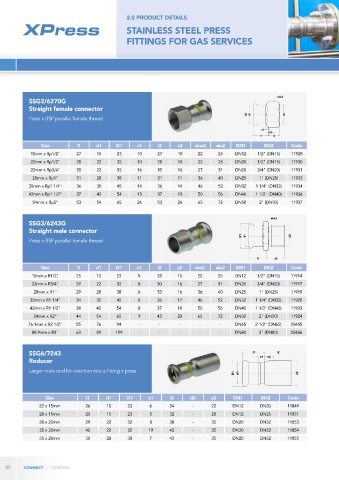

Page 80 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

2.0 PRODUCT DETAILS

STAINLESS STEEL PRESS
FITTINGS FOR GAS SERVICES

SSG2/6270G
Straight female connector
Press x BSP parallel female thread

Size l1 d1 D1 z1 l2 z2 skw2 sks2 DN1 DN2 Code
15mm x Rp1/2" 27 15 23 10 27 10 22 25 DN12 1/2" (DN15) 11928
22mm x Rp1/2" 28 22 32 10 28 10 22 25 DN20 1/2" (DN15) 11930
22mm x Rp3/4" 35 22 32 16 35 16 27 31 DN20 3/4" (DN20) 11931
28mm x Rp1" 31 28 38 11 31 11 36 40 DN25 1" (DN25) 11933
35mm x Rp1 1/4" 36 35 45 14 36 14 46 52 DN32 1 1/4" (DN32) 11934
42mm x Rp1 1/2" 37 42 54 13 37 13 50 56 DN40 1 1/2" (DN40) 11936
54mm x Rp2" 53 54 65 26 53 26 65 72 DN50 2" (DN50) 11937

SSG3/6243G
Straight male connector
Press x BSP parallel female thread

Size l1 d1 D1 z1 l2 z2 slw2 sks2 DN1 DN2 Code
15mm x R1/2" 25 15 23 5 28 15 22 25 DN12 1/2" (DN15) 11914
22mm x R3/4" 29 22 32 8 30 16 27 31 DN20 3/4" (DN20) 11917
28mm x R1" 29 28 38 6 33 16 36 40 DN25 1" (DN25) 11919
35mm x R1 1/4" 34 35 45 8 36 17 46 52 DN32 1 1/4" (DN32) 11920
42mm x R1 1/2" 38 42 54 8 37 18 50 56 DN40 1 1/2" (DN40) 11923
54mm x R2" 44 54 65 9 43 20 65 72 DN50 2" (DN50) 11924
76.1mm x R2 1/2" 55 76 94 - - - - - DN65 2 1/2" (DN65) 20485
88.9mm x R3" 63 89 109 - - - - - DN80 3" (DN80) 20486

SSG6/7243
Reducer

Larger male end for insertion into a fitting x press

Size l1 d1 D1 z1 l2 d2 z2 DN1 DN2 Code
22 x 15mm 26 15 23 6 34 - 22 DN12 DN20 11849
28 x 15mm 25 15 23 5 32 - 28 DN12 DN25 11851
28 x 22mm 29 22 32 8 38 - 35 DN20 DN32 11853
35 x 22mm 40 22 32 19 43 - 35 DN20 DN32 11854
35 x 28mm 30 28 38 7 43 - 35 DN25 DN32 11855

80
