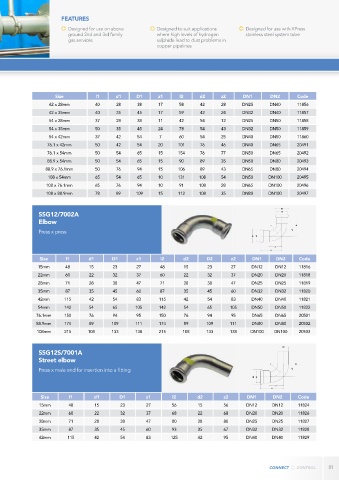

Page 81 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

FEATURES

Designed for use on above Designed to suit applications Designed for use with XPress
ground 2nd and 3rd family where high levels of hydrogen stainless steel system tube
gas services sulphide lead to dust problems in
copper pipelines

Size l1 d1 D1 z1 l2 d2 z2 DN1 DN2 Code
42 x 28mm 40 28 38 17 58 42 28 DN25 DN40 11856
42 x 35mm 40 35 45 17 59 42 24 DN32 DN40 11857
54 x 28mm 37 28 38 11 42 54 12 DN25 DN50 11858
54 x 35mm 50 35 45 24 78 54 43 DN32 DN50 11859
54 x 42mm 37 42 54 7 60 54 25 DN40 DN50 11860
76.1 x 42mm 50 42 54 20 101 76 46 DN40 DN65 20491
76.1 x 54mm 50 54 65 15 154 76 77 DN50 DN65 20492
88.9 x 54mm 50 54 65 15 90 89 35 DN50 DN80 20493
88.9 x 76.1mm 50 76 94 15 106 89 43 DN65 DN80 20494
108 x 54mm 65 54 65 10 131 108 54 DN50 DN100 20495
108 x 76.1mm 65 76 94 10 91 108 28 DN65 DN100 20496
108 x 88.9mm 78 89 109 15 112 108 35 DN80 DN100 20497

SSG12/7002A
Elbow
Press x press

Size l1 d1 D1 z1 l2 d2 D2 z2 DN1 DN2 Code
15mm 48 15 23 27 48 15 23 27 DN12 DN12 11816
22mm 60 22 32 37 60 22 32 37 DN20 DN20 11818
28mm 71 28 38 47 71 28 38 47 DN25 DN25 11819
35mm 87 35 45 60 87 35 45 60 DN32 DN32 11820
42mm 115 42 54 83 115 42 54 83 DN40 DN40 11821
54mm 142 54 65 105 142 54 65 105 DN50 DN50 11822
76.1mm 150 76 94 95 150 76 94 95 DN65 DN65 20501
88.9mm 174 89 109 111 174 89 109 111 DN80 DN80 20502
108mm 215 108 133 138 215 108 133 138 DN100 DN100 20503

SSG12S/7001A
Street elbow
Press x male end for insertion into a fitting

Size l1 d1 D1 z1 l2 d2 z2 DN1 DN2 Code
15mm 48 15 23 27 56 15 56 DN12 DN12 11824
22mm 60 22 32 37 68 22 68 DN20 DN20 11826
28mm 71 28 38 47 80 28 80 DN25 DN25 11827
35mm 87 35 45 60 93 35 67 DN32 DN32 11828
42mm 115 42 54 83 125 42 95 DN40 DN40 11829

81
