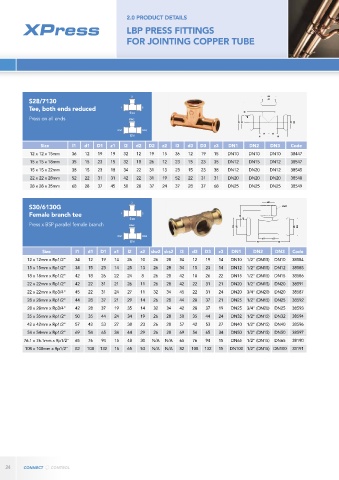

Page 24 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

2.0 PRODUCT DETAILS

LBP PRESS FITTINGS
FOR JOINTING COPPER TUBE

3
S28/7130
Tee, both ends reduced 1 2
Size
Press on all ends DN2

DN1 DN3
DN
Size l1 d1 D1 z1 l2 d2 D2 z2 l3 d3 D3 z3 DN1 DN2 DN3 Code
12 x 12 x 15mm 36 12 19 19 32 12 19 15 36 12 19 15 DN10 DN10 DN10 38447
15 x 15 x 18mm 35 15 23 15 32 18 26 12 23 15 23 35 DN12 DN15 DN12 38547
15 x 15 x 22mm 38 15 23 18 34 22 31 13 23 15 23 38 DN12 DN20 DN12 38545
22 x 22 x 28mm 52 22 31 31 42 22 31 19 52 22 31 31 DN20 DN20 DN20 38548
28 x 28 x 35mm 68 28 37 45 50 28 37 24 37 28 37 68 DN25 DN25 DN25 38549

3
S30/6130G
Female branch tee 1 2
Size
Press x BSP parallel female branch DN2

DN1 DN3
DN
Size l1 d1 D1 z1 l2 z2 slw2 sks2 l3 d3 D3 z3 DN1 DN2 DN3 Code
12 x 12mm x Rp1/2" 34 12 19 14 26 10 26 28 34 12 19 14 DN10 1/2" (DN15) DN10 38584
15 x 15mm x Rp1/2" 34 15 23 14 25 13 26 28 34 15 23 14 DN12 1/2" (DN15) DN12 38585
18 x 18mm x Rp1/2" 42 18 26 22 24 8 26 28 42 18 26 22 DN15 1/2" (DN15) DN15 38586
22 x 22mm x Rp1/2" 42 22 31 21 26 11 26 28 42 22 31 21 DN20 1/2" (DN15) DN20 38591
22 x 22mm x Rp3/4" 45 22 31 24 27 11 32 34 45 22 31 24 DN20 3/4" (DN20) DN20 38587
28 x 28mm x Rp1/2" 44 28 37 21 29 14 26 28 44 28 37 21 DN25 1/2" (DN15) DN25 38592
28 x 28mm x Rp3/4" 42 28 37 19 35 14 32 34 42 28 37 19 DN25 3/4" (DN20) DN25 38593
35 x 35mm x Rp1/2" 50 35 44 24 34 19 26 28 50 35 44 24 DN32 1/2" (DN15) DN32 38594
42 x 42mm x Rp1/2" 57 42 53 27 38 23 26 28 57 42 53 27 DN40 1/2" (DN15) DN40 38596
54 x 54mm x Rp1/2" 69 54 65 34 44 29 26 28 69 54 65 34 DN50 1/2" (DN15) DN50 38597
76.1 x 76.1mm x Rp1/2" 65 76 94 15 48 30 N/A N/A 65 76 94 15 DN65 1/2" (DN15) DN65 38190
108 x 108mm x Rp1/2" 82 108 132 15 65 53 N/A N/A 82 108 132 15 DN100 1/2" (DN15) DN100 38191

24
