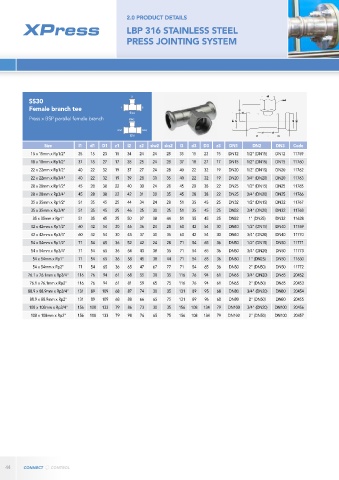

Page 44 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

2.0 PRODUCT DETAILS

LBP 316 STAINLESS STEEL
PRESS JOINTING SYSTEM

3
SS30
Female branch tee 1 2
Size
Press x BSP parallel female branch DN2

DN1 DN3
DN
Size l1 d1 D1 z1 l2 z2 slw2 sks2 l3 d3 D3 z3 DN1 DN2 DN3 Code
15 x 15mm x Rp1/2" 35 15 23 15 34 24 24 28 35 15 23 15 DN12 1/2" (DN15) DN12 11759
18 x 18mm x Rp1/2" 37 18 27 17 35 25 24 28 37 18 27 17 DN15 1/2" (DN15) DN15 11760
22 x 22mm x Rp1/2" 40 22 32 19 37 27 24 28 40 22 32 19 DN20 1/2" (DN15) DN20 11762
22 x 22mm x Rp3/4" 40 22 32 19 39 28 30 35 40 22 32 19 DN20 3/4" (DN20) DN20 11763
28 x 28mm x Rp1/2" 45 28 38 22 40 30 24 28 45 28 38 22 DN25 1/2" (DN15) DN25 11765
28 x 28mm x Rp3/4" 45 28 38 22 42 31 30 35 45 28 38 22 DN25 3/4" (DN20) DN25 11766
35 x 35mm x Rp1/2" 51 35 45 25 44 34 24 28 51 35 45 25 DN32 1/2" (DN15) DN32 11767
35 x 35mm x Rp3/4" 51 35 45 25 46 35 30 35 51 35 45 25 DN32 3/4" (DN20) DN32 11768
35 x 35mm x Rp1" 51 35 45 25 50 37 38 44 51 35 45 25 DN32 1" (DN25) DN32 11628
42 x 42mm x Rp1/2" 60 42 54 30 46 36 24 28 60 42 54 30 DN40 1/2" (DN15) DN40 11769
42 x 42mm x Rp3/4" 60 42 54 30 48 37 30 35 60 42 54 30 DN40 3/4" (DN20) DN40 11770
54 x 54mm x Rp1/2" 71 54 65 36 52 42 24 28 71 54 65 36 DN50 1/2" (DN15) DN50 11771
54 x 54mm x Rp3/4" 71 54 65 36 54 43 30 35 71 54 65 36 DN50 3/4" (DN20) DN50 11773
54 x 54mm x Rp1" 71 54 65 36 58 45 38 44 71 54 65 36 DN50 1" (DN25) DN50 11630
54 x 54mm x Rp2" 71 54 65 36 65 47 67 77 71 54 65 36 DN50 2" (DN50) DN50 11772
76.1 x 76.1mm x Rp3/4" 116 76 94 61 68 55 30 35 116 76 94 61 DN65 3/4" (DN20) DN65 20452
76.1 x 76.1mm x Rp2" 116 76 94 61 81 59 65 75 116 76 94 61 DN65 2" (DN50) DN65 20453
88.9 x 88.9mm x Rp3/4" 131 89 109 68 87 74 30 35 131 89 95 68 DN80 3/4" (DN20) DN80 20454
88.9 x 88.9mm x Rp2" 131 89 109 68 88 66 65 75 131 89 96 68 DN80 2" (DN50) DN80 20455
108 x 108mm x Rp3/4" 156 108 133 79 86 73 30 35 156 108 134 79 DN100 3/4" (DN20) DN100 20456
108 x 108mm x Rp2" 156 108 133 79 98 76 65 75 156 108 134 79 DN100 2" (DN50) DN100 20457

44
