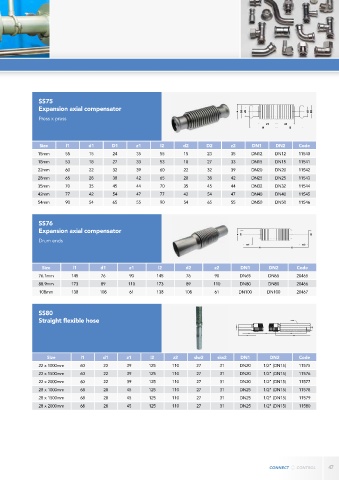

Page 47 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS
P. 47
SS75
Expansion axial compensator
Press x press
Size l1 d1 D1 z1 l2 d2 D2 z2 DN1 DN2 Code
15mm 55 15 24 35 55 15 23 35 DN12 DN12 11540
18mm 53 18 27 33 53 18 27 33 DN15 DN15 11541
22mm 60 22 32 39 60 22 32 39 DN20 DN20 11542
28mm 65 28 38 42 65 28 38 42 DN25 DN25 11543
35mm 70 35 45 44 70 35 45 44 DN32 DN32 11544
42mm 77 42 54 47 77 42 54 47 DN40 DN40 11545
54mm 90 54 65 55 90 54 65 55 DN50 DN50 11546
SS76
Expansion axial compensator
Drum ends
Size l1 d1 z1 l2 d2 z2 DN1 DN2 Code
76.1mm 145 76 90 145 76 90 DN65 DN65 20465
88.9mm 173 89 110 173 89 110 DN80 DN80 20466
108mm 138 108 61 138 108 61 DN100 DN100 20467
SS80
Straight flexible hose
Size l1 d1 z1 l2 z2 slw2 sks2 DN1 DN2 Code
22 x 1000mm 60 22 39 125 110 27 31 DN20 1/2" (DN15) 11575
22 x 1500mm 60 22 39 125 110 27 31 DN20 1/2" (DN15) 11576
22 x 2000mm 60 22 39 125 110 27 31 DN20 1/2" (DN15) 11577
28 x 1000mm 68 28 45 125 110 27 31 DN25 1/2" (DN15) 11578
28 x 1500mm 68 28 45 125 110 27 31 DN25 1/2" (DN15) 11579
28 x 2000mm 68 28 45 125 110 27 31 DN25 1/2" (DN15) 11580
47
