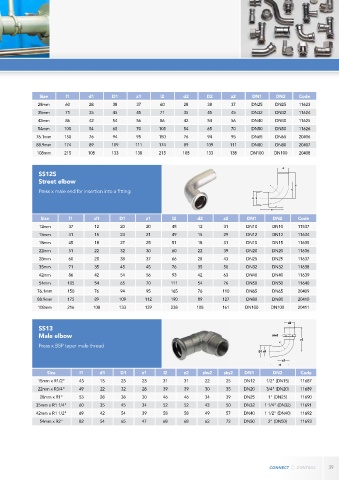

Page 39 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

Size l1 d1 D1 z1 l2 d2 D2 z2 DN1 DN2 Code
28mm 60 28 38 37 60 28 38 37 DN25 DN25 11623
35mm 71 35 45 45 71 35 45 45 DN32 DN32 11624
42mm 86 42 54 56 86 42 54 56 DN40 DN40 11625
54mm 105 54 65 70 105 54 65 70 DN50 DN50 11626
76.1mm 150 76 94 95 150 76 94 95 DN65 DN65 20406
88.9mm 174 89 109 111 174 89 109 111 DN80 DN80 20407
108mm 215 108 133 138 215 108 133 138 DN100 DN100 20408

SS12S
Street elbow
Press x male end for insertion into a fitting

Size l1 d1 D1 z1 l2 d2 z2 DN1 DN2 Code
12mm 37 12 20 20 48 12 31 DN10 DN10 11537
15mm 41 15 23 21 49 15 29 DN12 DN12 11634
18mm 45 18 27 25 51 18 31 DN15 DN15 11635
22mm 51 22 32 30 60 22 39 DN20 DN20 11636
28mm 60 28 38 37 66 28 43 DN25 DN25 11637
35mm 71 35 45 45 76 35 50 DN32 DN32 11638
42mm 86 42 54 56 93 42 63 DN40 DN40 11639
54mm 105 54 65 70 111 54 76 DN50 DN50 11640
76.1mm 150 76 94 95 165 76 110 DN65 DN65 20409
88.9mm 175 89 109 112 190 89 127 DN80 DN80 20410
108mm 216 108 133 139 238 108 161 DN100 DN100 20411

SS13
Male elbow
Press x BSP taper male thread

Size l1 d1 D1 z1 l2 z2 slw2 sks2 DN1 DN2 Code
15mm x R1/2" 43 15 23 23 31 31 22 25 DN12 1/2" (DN15) 11687
22mm x R3/4" 49 22 32 28 39 39 30 35 DN20 3/4" (DN20) 11689
28mm x R1" 53 28 38 30 46 46 34 39 DN25 1" (DN25) 11690
35mm x R1 1/4" 60 35 45 34 52 52 43 50 DN32 1 1/4" (DN32) 11691
42mm x R1 1/2" 69 42 54 39 58 58 49 57 DN40 1 1/2" (DN40) 11692
54mm x R2" 82 54 65 47 68 68 62 72 DN50 2" (DN50) 11693

39
