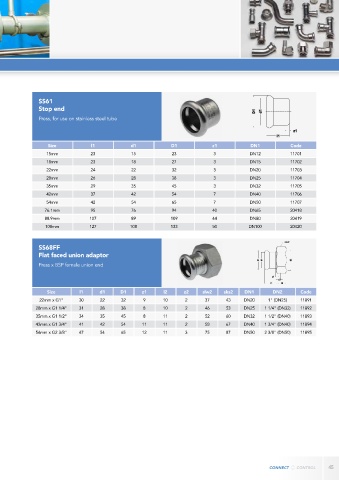

Page 45 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

SS61
Stop end
Press, for use on stainless steel tube

Size l1 d1 D1 z1 DN1 Code
15mm 23 15 23 3 DN12 11701
18mm 23 18 27 3 DN15 11702
22mm 24 22 32 3 DN20 11703
28mm 26 28 38 3 DN25 11704
35mm 29 35 45 3 DN32 11705
42mm 37 42 54 7 DN40 11706
54mm 42 54 65 7 DN50 11707
76.1mm 95 76 94 40 DN65 20418
88.9mm 107 89 109 44 DN80 20419
108mm 127 108 133 50 DN100 20420

SS68FF
Flat faced union adaptor
Press x BSP female union end

Size l1 d1 D1 z1 l2 z2 slw2 sks2 DN1 DN2 Code
22mm x G1" 30 22 32 9 10 2 37 43 DN20 1" (DN25) 11891
28mm x G1 1/4" 31 28 38 8 10 2 46 53 DN25 1 1/4" (DN32) 11892
35mm x G1 1/2" 34 35 45 8 11 2 52 60 DN32 1 1/2" (DN40) 11893
42mm x G1 3/4" 41 42 54 11 11 2 58 67 DN40 1 3/4" (DN40) 11894
54mm x G2 3/8" 47 54 65 12 11 3 75 87 DN50 2 3/8" (DN50) 11895

45
